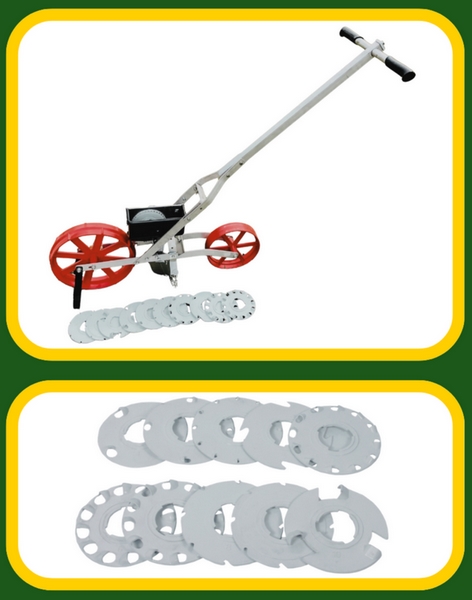

The Garden Seeder MiniMistral

Priorities of the Seeder are precision, simple tending and big scale of useing. It can plant seeds of bean, corn, cucumber, tomato and many other sorts of the plants in to adjustable depth under requirements of each sorts of seeds. This is reached by useing simple exchangeable plastic seed plates, which are included with each Garden Seeder. Easy work operation will make cover of a seed for soving, pressing of a soil and marking next row by marker. The Garden Seeder is very light, easy to control and undermanding for maintenance. Made from durable weather resistant materials for years dependable use. Non corrosive.

Using Seed plates

Nr. Sort of seed Spacing in inch or mm
1 Cereals 8 1/2″ (220mm)
2 Corn 8 1/2″ (220mm)
3 Radish, Leek, Chive, Spinach 3″ (73mm)
4 Cucumbers 8 1/2″ (220mm)
5 Red Beets 3 1/2″ (88mm)
6 Small Peas 3″ (73mm)
7 Beans, Peas 3 1/2″ (88mm)
8 Carrot, Lettuce, Onion, Cabbage, Tomatos, Poppy seed 4 1/3″ (110mm)
9 Lettuce, Cabbage, Mustard, Carrot, Rhubarb, Poppy seed 4 1/3″ (110mm)
10 Beans 12″ (293)
11 Broccoli, Cabbage, Lettuce, Rhubarb 1″ (25mm)

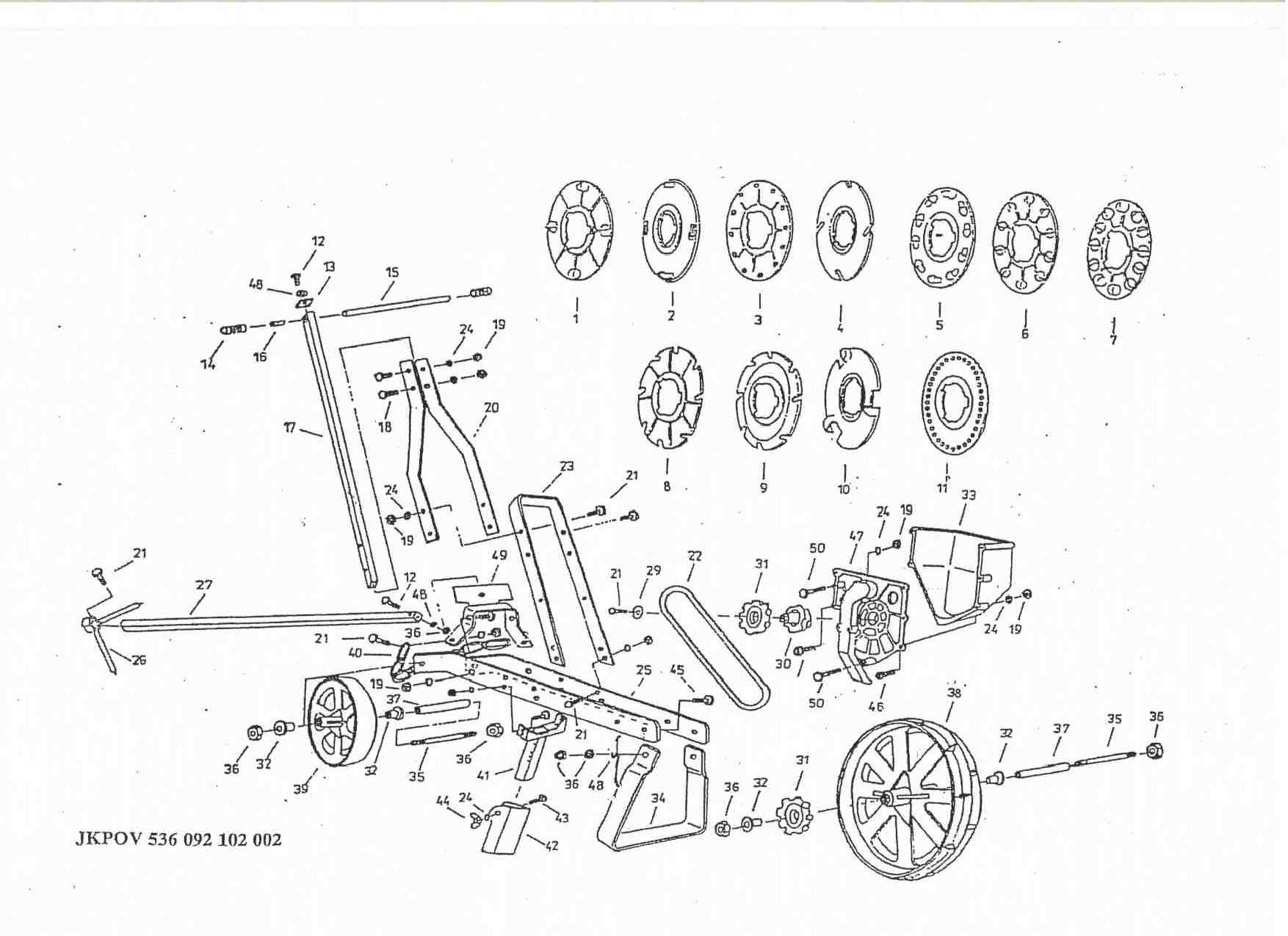

CATALOG OF SPART PARTS

Nr. Description of part Order Nr. Pieces
1 Seed Plate Nr. 1 536210001 1
2 Seed Plate Nr. 2 536210002 1
3 Seed Plate Nr. 3 536210003 1
4 Seed Plate Nr. 4 536210004 1
5 Seed Plate Nr. 5 536210005 1
6 Seed Plate Nr. 6 536210006 1
7 Seed Plate Nr. 7 536210007 1
8 Seed Plate Nr. 8 536210008 1
9 Seed Plate Nr. 9 536210009 1
10 Seed Plate Nr. 10 5362100010 1
11 Seed Plate Nr. 11 5362100011 1
12 Screw M8x35 DIN933 90001214 1
13 Cover Al SM-4-0-013 1
14 Plastic handle 536210013 2
15 Handle pipe f 22×1,5 Al  14200150 1
16 Pipe f 19×3,3 Al 14200160 1
17 Handle Assembly 25x25x1,5 Al 14200170 1
18 Screw M6x40 Zn DIN931 90001043 4
19 Nut M6 Zn DIN934 90002006 23
20 Frame assembly Al 14200200 2
21 Screw M6x16 Zn DIN933 90001028 16
22 Belt 8×630 536210018 1
23 Frame holder 30×4 Al 14200230 1
24 Plated Washer 6,4 Zn DIN6798 900003 21
25 Holder of wheel Al 14200250 2
26 Row Marker Al 14200260 1
27 Row Marker Shift 15x15x1,5 Al 14200270 1
28 Screw M8x35 Zn DIN933 9001215 1
29 Plated Washer 22/6,6 Zn DIN440 9003004 1
30 Axle SM-3-0-030 1
31 Pulley 14200310 2
32 Wheel Bearing 13×2 plastic SM-4-0-032 4
33 Seed Hoper 14200330 1
34 Stand of Seeder 25×3 14200340 1
35 Screw M8x110Zn DIN931 9001085 2
36 Nut M8 Zn DIN985 9002009 2
37 Pipe f 13×2 metal  14200370 2
38 Front Wheel fí 310 14200380 1
39 Rear Wheel fí 210 14200390 1
40 Cover Chain 24 chains 536210031 1
41 Ground Opener Cast Al 14200410 1
42 Cover of Ground Opener Al 14200420 1
43 Screw M6x40Zn DIN603 9001296 1
44 Wing Nut M6 Zn DIN315 9002113 1
45 Screw M8x20 Zn DIN933 9001046 2
46 Screw M3x12 Zn DIN798 9001026 5
47 Cover of Box incl. covering Al SM-2-0-047/A 1
48 Plated Washer 8 Zn DIN125 9003661 8
49 Holder of Marker Al 14200490 1
50 Nut M8 Zn DIN934 9002012 3
51 Metal lock 142000120 1
52 Screw M6x35 Zn DIN933 9001040 1
53 Screw M6x40 Zn  DIN933 9001075 1
54 Nut M8 Zn DIN6798 9003013 1

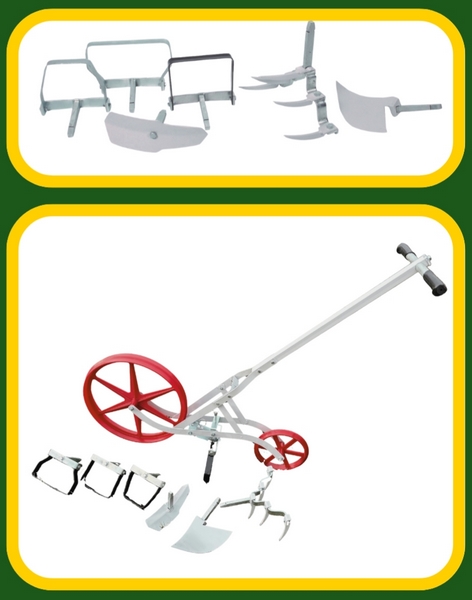

Garden cultivator MiniMistral

Garden cultivator is the hand machine which is determined for one line tilling of light soils in gardens and small field. Garden cultivator assords these work operations: mellowing, furrowing, molding, hilling and slicing. Main parts of Garden cultivator: frame, work tools (five tine cultivator, furrow plough, moldboard and hilling plough, slicing hoes), work depth adjuster, guide wheels. Using exchangeable work tools user reachs all work operations. Work tools includ with each Garden cultivator. The machine has 7 work tools: one five tine cultivator, one reversible two size furrow plough, one moldboard and hilling plough and four slicing hoes with differant work breadths (30, 20, 15, 10 cm or 12´´, 8´´, 6´´, 4´´).
Desired depth is regulated by adjustment handle from 0 to 7 cm or from 0 to 2 3/4´´. Garden cultivator is kept in engagement by two guide wheels which also secure equable work depth. Big front wheel makes the manipulation with the machine simple. Garden cultivator does not require extra maintenance. We only recommend to control nuts and bolts, wash off any accumulation of dust and dirt and avoid long exposure to harsh weather.

CATALOG OF SPART PARTS

Nr. Description of part Order Nr. Pieces
1 Bar of the frame 536001 2
2 Holder of the frame 536002 1
3 Console of the frame 536003 2
4 Square tube 536004 1
5 Tube f 22×1,5 536005 1
6 Shield 536006 1
7 Tube f 19×3,3 536007 1
8 Support of frame 536008 2
9 Bridge 536009 1
10 Clamp 536010 1
11 Stop 536011 1
12 Spring 536012 1
13 Adjuster of lift 536013 1
14 Trip dog 536014 1
15 Front wheel 536015 1
16 Rear wheel 536016 1
17 Distance pipe f 13×2 536017 2
18 Screw M8x110 536018 4
19 Holder 1 536019 2
20 Small wheel 536020 1
21 Ring of fuse 536021 1
22 Screw M8x45 536022 1
23 Screw M8x45 ČSN 021101 1
24 Screw M8x20 ČSN 021103 12
25 Screw M6x45 ČSN 021101 2
26 Screw M6x20 ČSN 021103 28
27 Nut M8 ČSN 021401 12
28 Nut M6 ČSN 021401 32
29 Washer 8 ČSN 021740 4
30 Washer 6 ČSN 021744 26
31 Washer 6 ČSN 021702 8
32 PVC handle 536032 2
33 Cultivator 536033 1
34 Plough of cultivator 536034 5
35 Holder of cultivator 536035 1
36 Arbor 536036 7
37 Heaping share 536037 1
38 Plough of heaping share 536038 1
39 Grooving share 536039 1
40 Exavator of grooving share 536040 1
41 Weeper 206 536041 1
42 Knife of weeper b=206 mm 536042 1
43 Console of weeper 536043 4
44 Weeper 150 536044 1
45 Knife of weeper b=150 mm, 6″ 536045 1
46 Weeper 100 536046 1
47 Knife of weeper b=100mm, 4″ 536047 1
48 Weeper 300 536048 1
49 Knife of weeper b=300 mm,12″ 536049 1
50 Washer 8 536050 11
