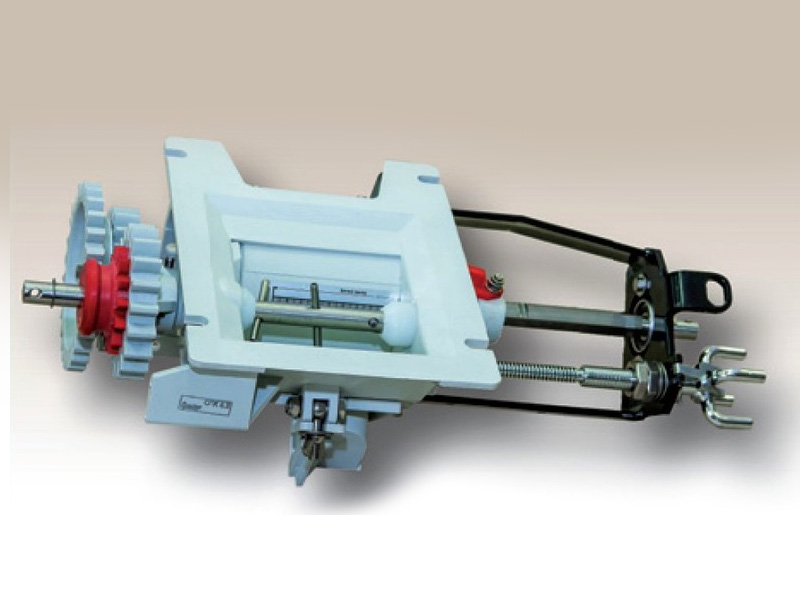

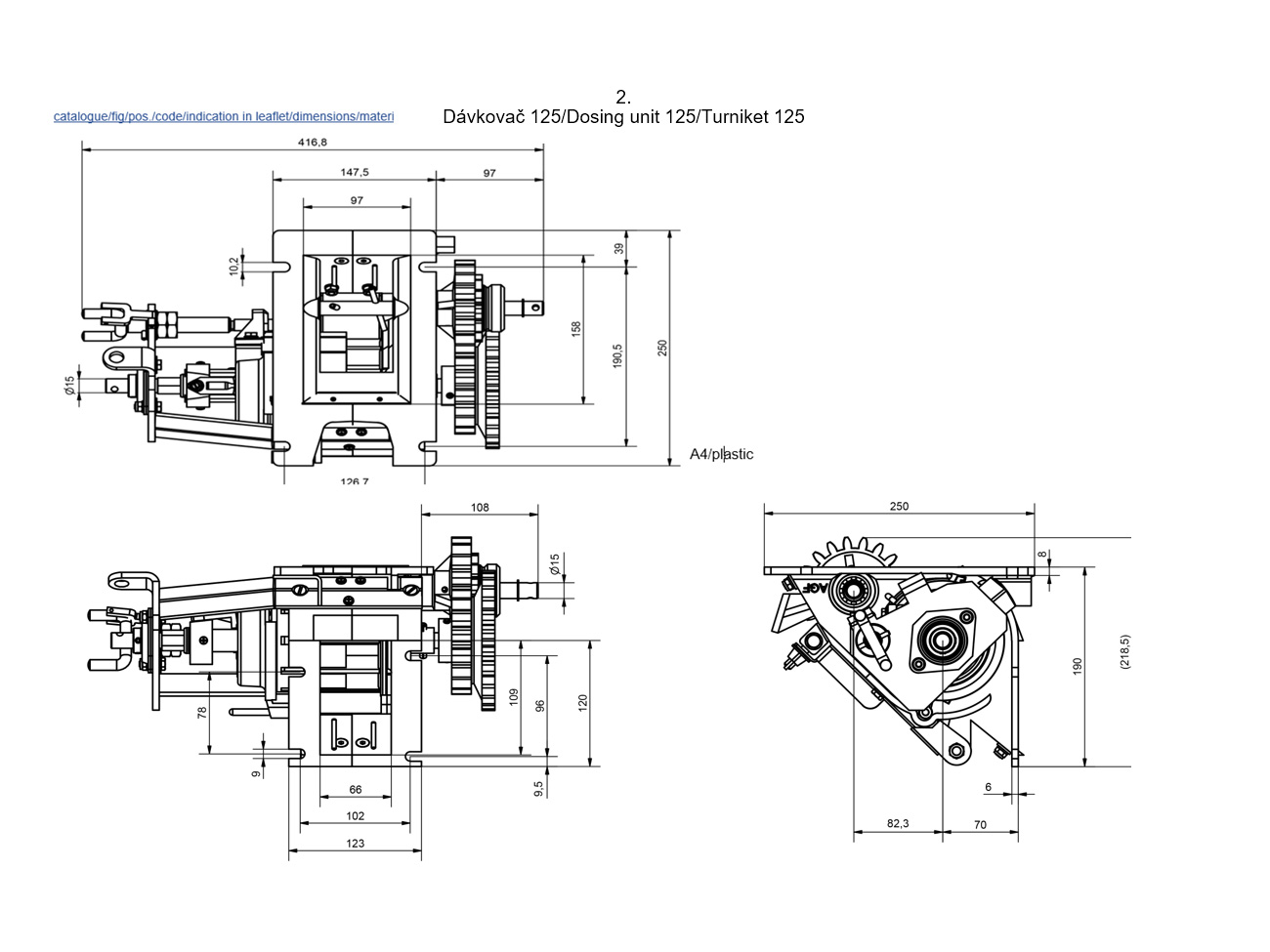

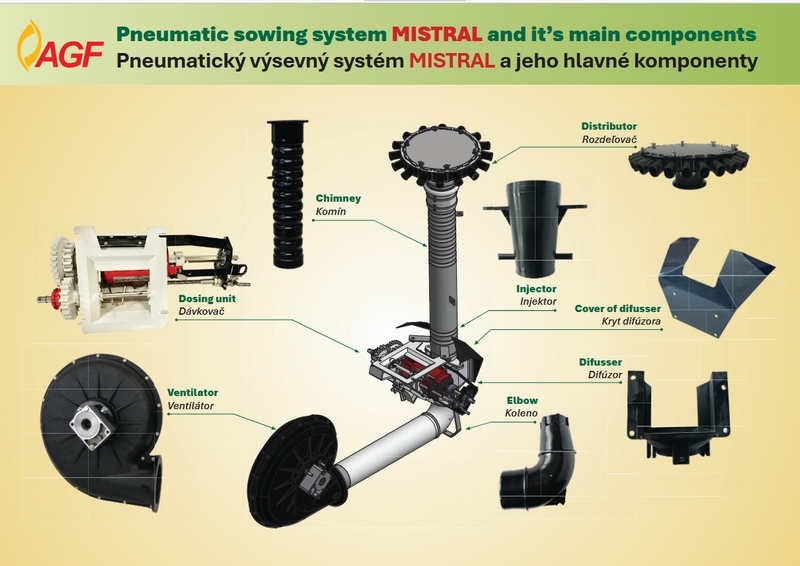

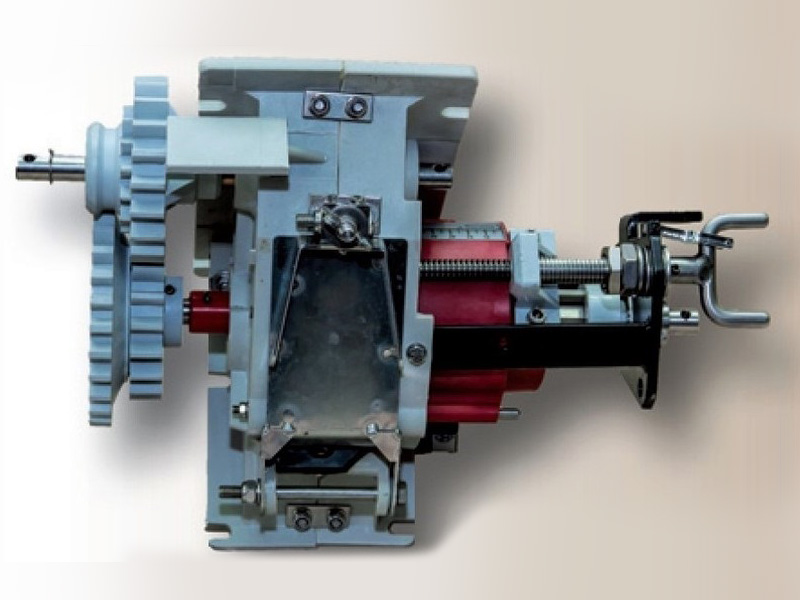

Dosing unit standard

The unit is designed for metering seeds for the sowing of cereals, legumes, and oilseed crops. The system enables precise metering and pneumatic conveying of seeds with grain sizes ranging from 1 to 10 mm.

The metering unit features a chamber-type housing with a rotary metering roller as its main functional component. It is suitable for both standard seeding and micro-seeding applications.

Dosing unit stainless

The unit is designed for metering seeds and granular fertilizers for the sowing of cereals, legumes, and oilseed crops. The system enables accurate metering and pneumatic conveying of seeds with grain sizes ranging from 1 to 10 mm, as well as granular fertilizers.

The metering unit features a chamber-type housing with a rotary metering roller as its main functional component. It is suitable for standard seeding, micro-seeding, and fertilizer application.

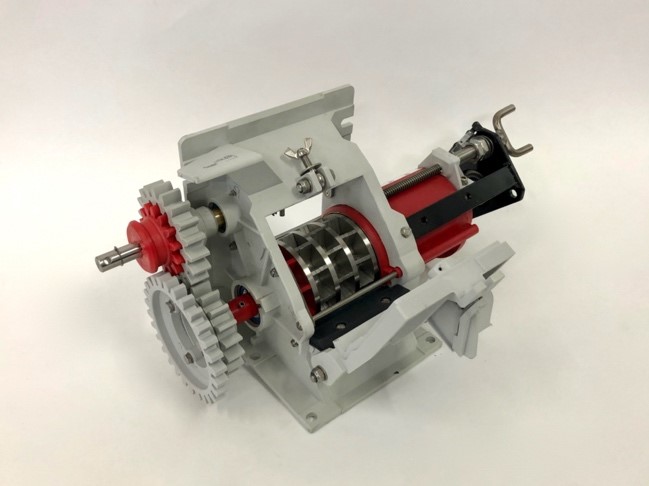

Dosing unit DAV-2 MISTRAL

K005/1

DAV 2 MISTRAL dosing unit is primarily intended for dosing granular / crystalline artificial industrial fertilizers with a granule size of 1 to 5 mm and with a maximum dust content of up to 10% (NPK, nitrate). The modified design of the dosing unit mainly solves the increase of service life, approximately 3 times compared to the previous standard version. Of course also seeds can be dosed with the DAV 2 – MISTRAL.

The sowing rate can be set by:

1. stepwise adjustment of the sowing rate with an accuracy of 40 (20) kg, by means of mechanical axial adjustment of the overlap of the active part of the star cylinder
2. changing the speed of the star cylinder
3. a combination of the settings in a. and b.

We can provide more detailed information on request.

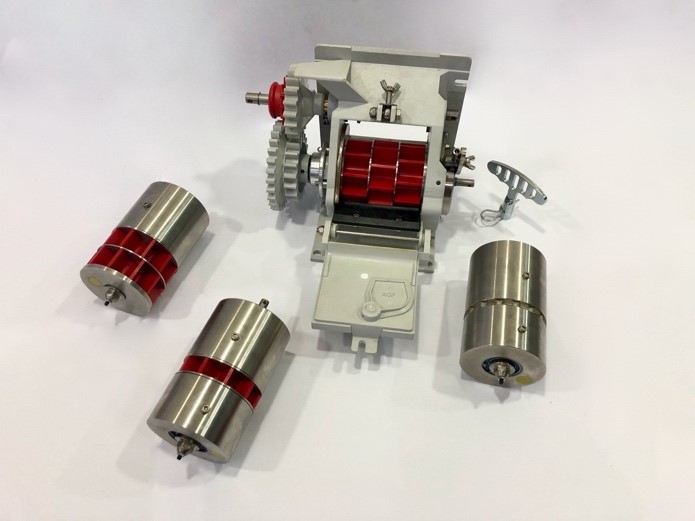

Dosing unit DAV 3 stainless

K006/1       A3

DAV 3 MISTRAL feeder is mainly intended for dosing seeds and granular fertilizers in the construction of pneumatic seed drills. The setting of the appropriate dose depends on the use of a suitable seed roller and the setting of its rotation speed. This can be changed by means of a continuous mechanical speed change or an electromotive speed control system.

Dosing unit is mainly suited for dosing seeds and granulated fertilizer in pneumatic seed drills. It is intended for seeding of dense types of seeds, as wheat, barley, maize, peas, rice, grass, oilseed rape, etc., due to easy exchange of sowing rollers. The setting of appropriate dose depends on the use of suitable roller and setting of its rotation speed. Dosing unit DAV-3 MISTRAL works on the basis of continuous mechanical change of operating speed or electromotive speed control system. Presumption for using DAV-3

MISTRAL is to have following types of drive:

1. Mechanical drive with suitable variator
2. Electric drive and GPS (Electric drive is possible to arrange from different well-known suppliers)

This dosing unit is able to substitute existing dosing units type Mistral or Kverneland Accord. The connection to the hopper and drive is also compatible.

Dosing unit DAV-4  ø150 stainless

K007/1A

is dosing unit with a horizontal injection node and is primarily intended for dosing industrial artificial fertilizers and pellets in unusually large doses – kg/ha. The dosing capacity is approx. 0.26 to 1,5 kg/s (also depending on the use of suitable pneumatic transport pipe system).

characteristics:

1. DAV – 4 dosing unit is intended exclusively for dispensing industrial granular and crystalline fertilizers, including pelets used in agriculture.
2. DAV – 4 dosing unit is designed for highly efficient pressure transport of seed from the dispenser to the sowing units, i.e. for large transport lengths of up to approx. 16 to 20 m.
3. The dosing length of the star cylinder is made for large-volume doses of various commodities.
4. The transport performance of the dispenser in the standard version is in the range of 0.26 to 1.5 kg/s fertilizers and pellets according to the type of commodity and its specific density
5. Recommended working speed range 18 – 105 rpm.
6. The adjustment of the dose of fertilization is possible with the help of continuous regulation of the speed of revolutions of the electric or mechanical drive of the dosing unit.

Dosing unit DAV-5  ø170 stainless

K007/1B

is a dosing unit with a horizontal injection node and is primarily intended for dosing industrial artificial fertilizers and pellets in unusually large doses – kg/ha. The dosing capacity is approximately from 0.54 to 3.0 kg/s (also depending on the use of a suitable pneumatic transport pipe system).

Characteristics:

1. DAV – 5 dosing unit is primarily intended for dispensing industrial granular and crystalline fertilizers, also pellets used in agriculture.
2. DAV – 5 dosing unit is designed for highly efficient pressure transport of seed from the dispenser to the sowing units, i.e. for large transport lengths of up to approx. 16 to 20 m
3. The dosing length of the star cylinder is made for large-volume doses of various commodities.
4. The transport performance of the dispenser in the standard version in the range of 0.54 to 3.0 kg/s fertilizers and pellets according to the type of commodity and its specific density
5. Recommended working speed range of 18 – 105 rpm.
6. The adjustment of the dose of fertilization is possible with the help of continuous regulation of the speed of revolutions of the electric or mechanical drive of the dosing unit.

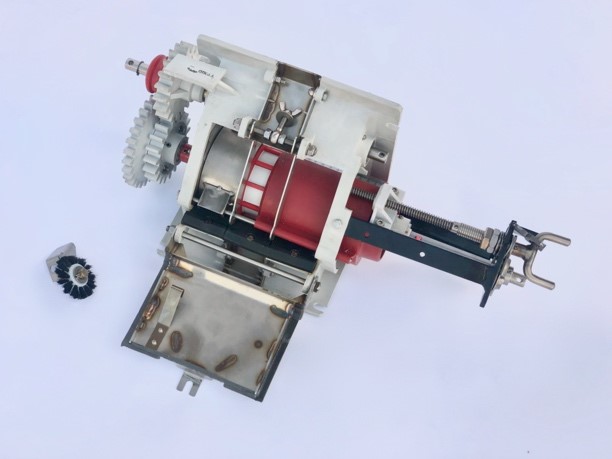

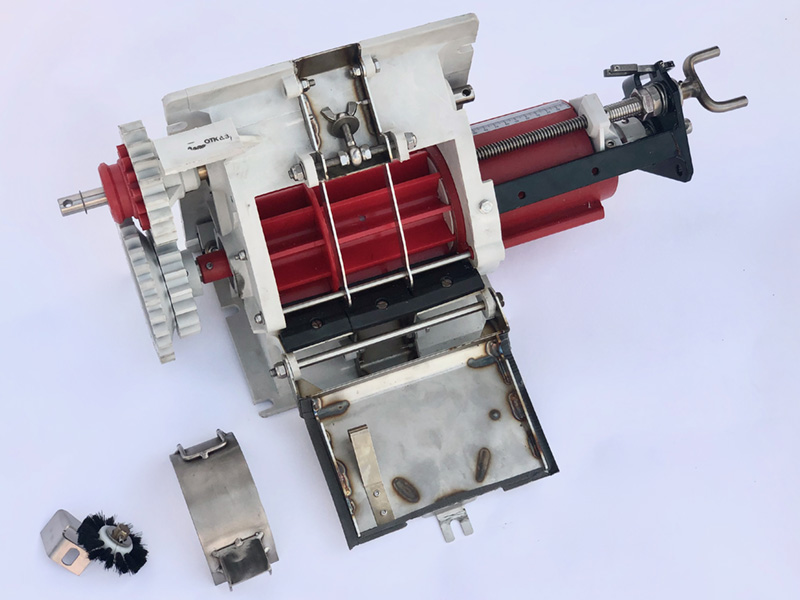

Dosing unit DAV 530

DAV – 530 MISTRAL dosing unit is intended for dosing standard seeds when higher sowing rates are required and also for special seeds which are lower in hectolitre weight and are sown in higher sowing rates – kg / ha (they are sown with their plant cover, e.g.Dinkel seed).

Dosing unit DAV – 530 MISTRAL allows:

1. simple adjustment of sowing rates in combination of the classic mechanical adjustment of the overlap of the dosing chambers of the star cylinder and the use or non-use of the extended star cylinder
2. sowing of standard types of dense seeds with / without the use of micro-sowing
3. sowing of a larger dose of seeds by approx. 46% more than the standard dosing unit.
4. sowing of a standard dose at a higher sowing speed of the seed drill.

DAV – 530 MISTRAL can be also mounted on the connecting part of classic seed drill hoppers using two pieces of connection reductions.

We can provide more detailed information on request.

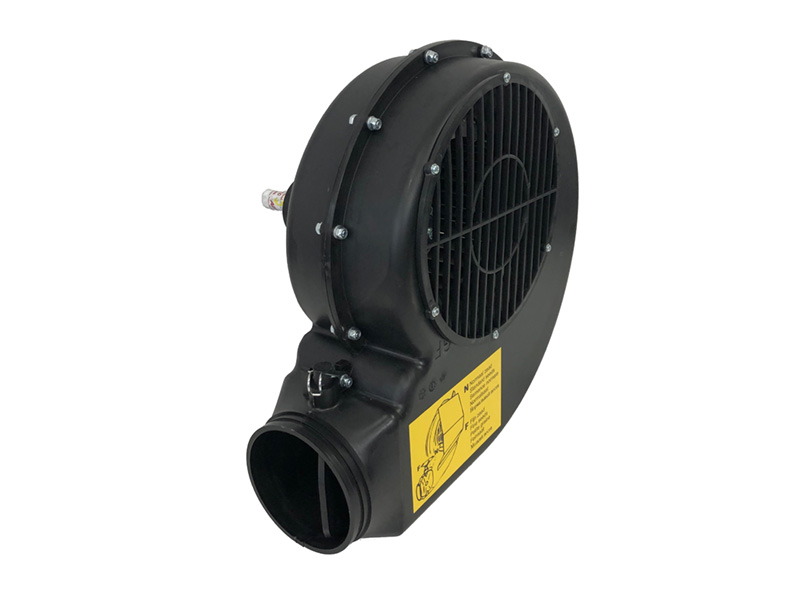

Fan VEN D260

It is a device that generates the airflow required to transport seed or fertilizer from the hopper through the distribution hoses to the seed coulters. The designation 260 refers to the diameter of the impeller.

Main functions of the fan:

• Generates the airflow required for the pneumatic transport of seed and fertilizer.
• Ensures even distribution of material to all seed rows.
• Minimizes the risk of distribution hose blockages.
• Enables precise application of seed and fertilizer, even at higher operating speeds.

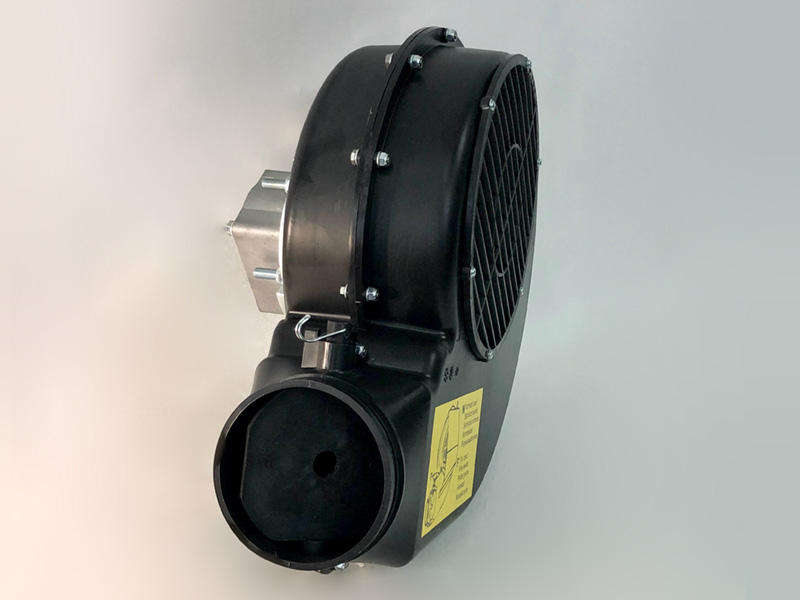

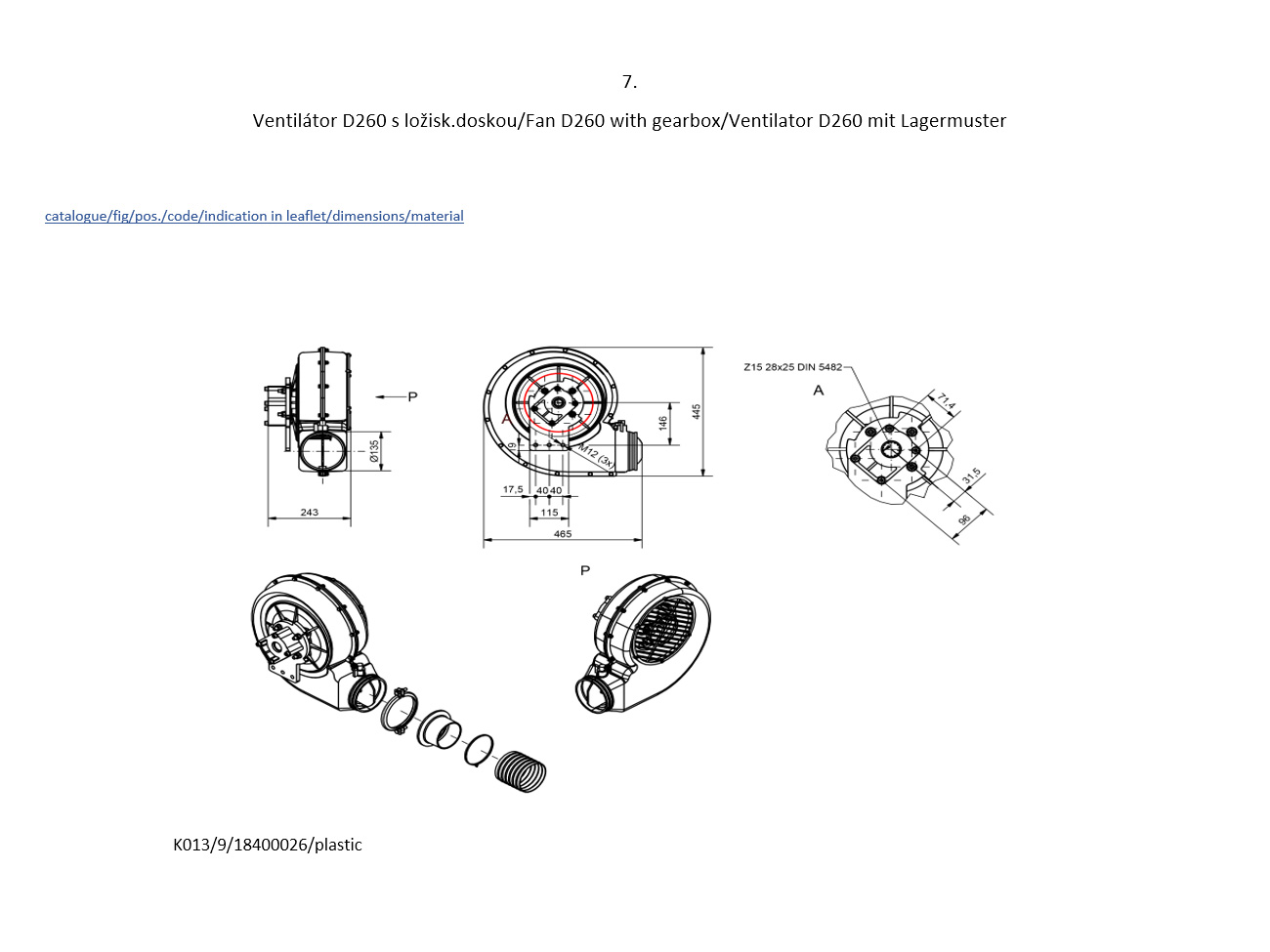

Fan VEN D260 with bearing plate

The fan with a bearing plate is designed to generate compressed air at sufficient pressure and volume for the requirements of agricultural pneumatic seed drills or machines with similar applications. Its design is adapted for direct coupling with a suitable rotary hydraulic motor. This type of fan forms a compact, space-saving unit that allows for easy attachment to the seed drill frame.

More information can be provided upon request.

Fan VEN D320

t is a device that generates the airflow required to transport seed or fertilizer from the hopper through the distribution hoses to the seed coulters. The designation 320 refers to the diameter of the impeller. In pneumatic seed drills, the fan is most commonly driven by a hydraulic motor or by the tractor’s PTO (Power Take-Off) shaft.We recommend this for seed drills with a working width of more than 4 m.

Main functions of the fan:

• Generates the airflow required for the pneumatic transport of seed and fertilizer.
• Ensures even distribution of material to all seed rows.
• Minimizes the risk of distribution hose blockages.
• Enables precise application of seed and fertilizer, even at higher operating speeds.

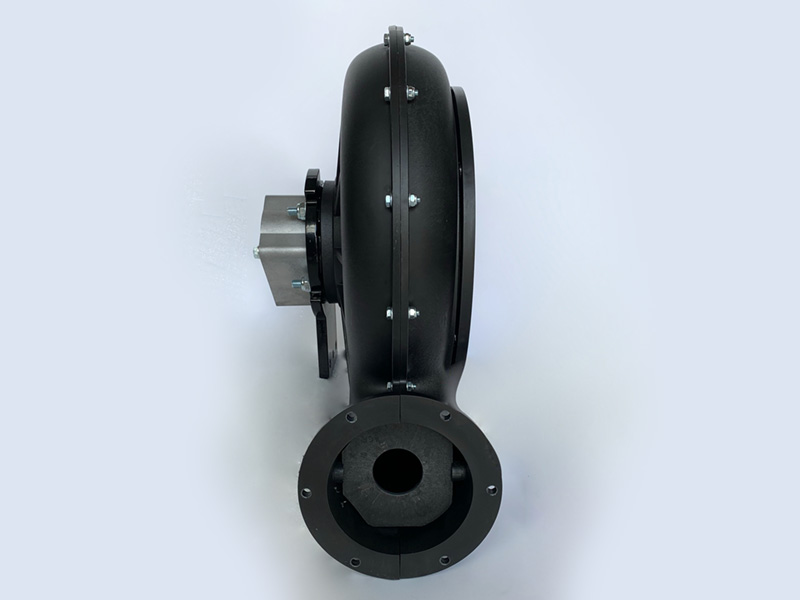

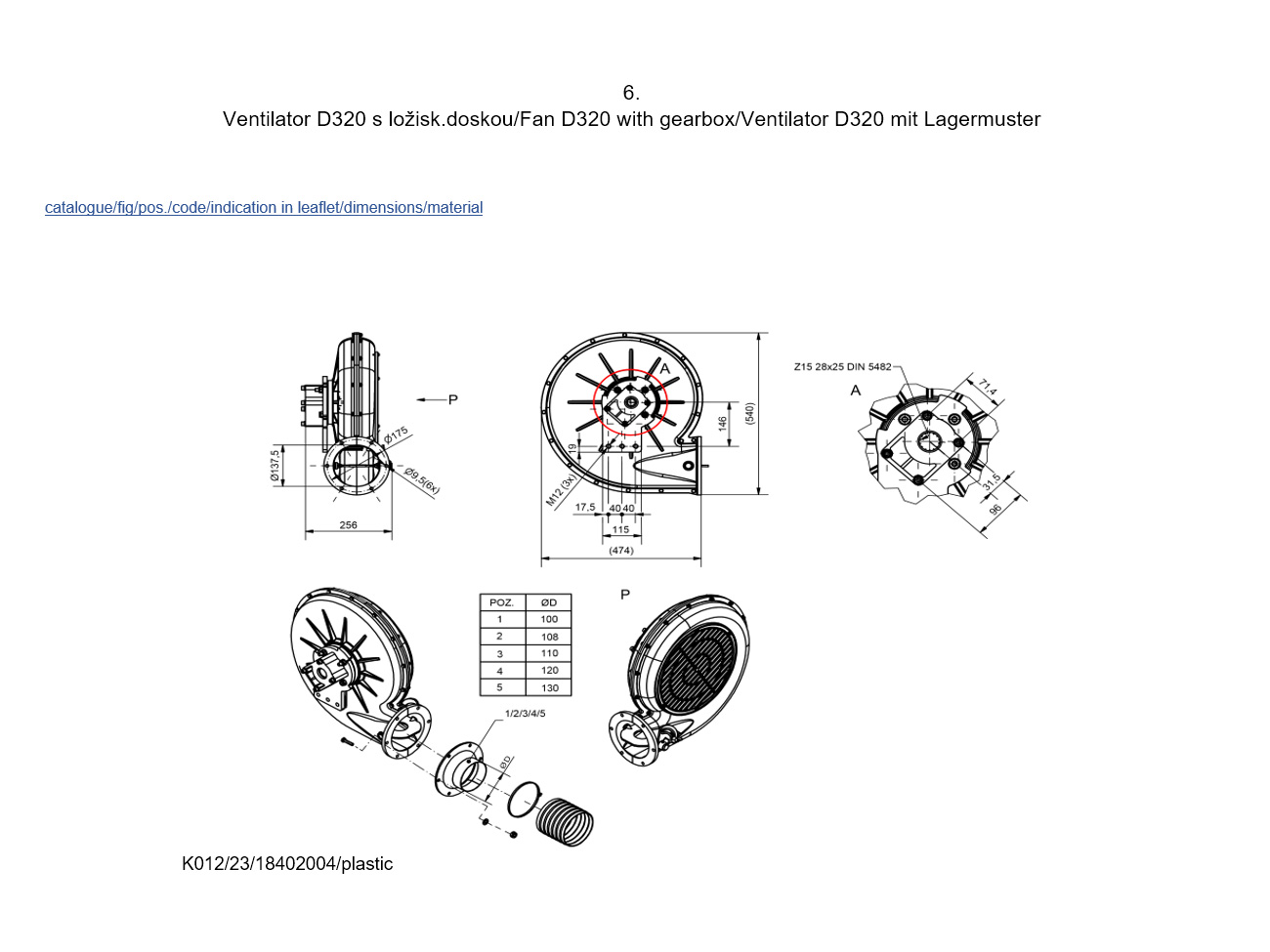

Fan VEN D320 with bearing plate

The fan with a bearing plate is designed to generate compressed air at sufficient pressure and volume for the requirements of agricultural pneumatic seed drills or machines with similar applications. Its design is adapted for direct coupling with a suitable rotary hydraulic motor. This type of fan forms a compact, space-saving unit that allows for easy attachment to the seed drill frame. We recommend this for seed drills with a working width of more than 4 m.

More information can be provided upon request.

Fan VEN D330

K014

It is a device that generates the airflow required to transport seed or fertilizer from the hopper through the distribution hoses to the seed coulters. The designation 320 refers to the diameter of the impeller. In pneumatic seed drills, the fan is most commonly driven by a hydraulic motor or by the tractor’s PTO (Power Take-Off) shaft. This is a more powerful fan, offering up to 25% higher performance compared with the D 320 fan. We recommend this for seed drills with a working width of more than 4 m.

Main functions of the fan:

• Generates the airflow required for the pneumatic transport of seed and fertilizer.
• Ensures even distribution of material to all seed rows.
• Minimizes the risk of distribution hose blockages.
• Enables precise application of seed and fertilizer, even at higher operating speeds.

Fan VEN D330 with bearing plate

The fan with a bearing plate is designed to generate compressed air at sufficient pressure and volume for the requirements of agricultural pneumatic seed drills or machines with similar applications. Its design is adapted for direct coupling with a suitable rotary hydraulic motor. This type of fan forms a compact, space-saving unit that allows for easy attachment to the seed drill frame. This is a more powerful fan, offering up to 25% higher performance compared with the D 320 fan. We recommend this for seed drills with a working width of more than 4 m.

More information can be provided upon request

Diffuser

It is a component of the pneumatic system that slows down and directs the airflow carrying the transported seed or fertilizer before it is distributed into the individual seed hoses. It is located between the fan and the distributor head.

Main functions of the diffuser:

• Slows down and stabilizes the airflow.
• Ensures even distribution of air carrying seed or fertilizer.
• Reduces turbulence in the piping system.
• Improves metering accuracy and sowing uniformity.
• Helps prevent uneven filling of individual hoses.

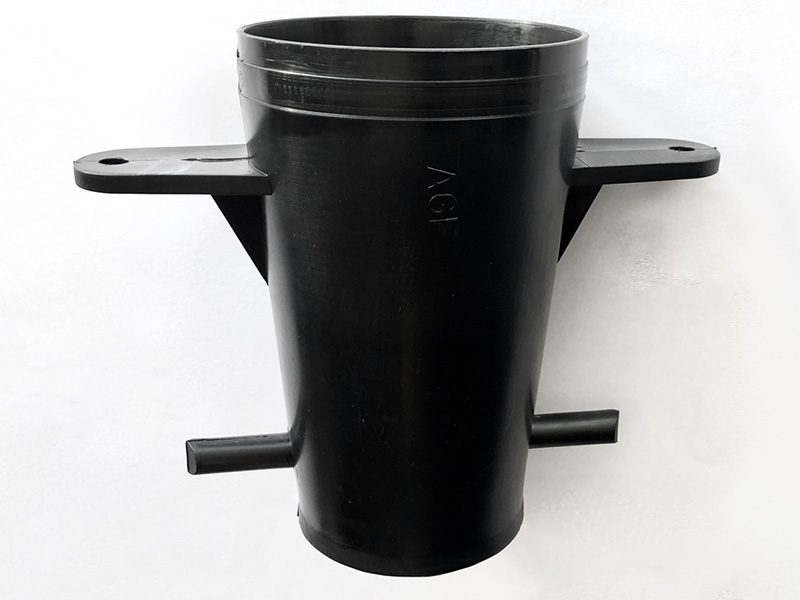

Diffuser – funnel D135

K023/20            D1

It is a component of the pneumatic system that slows down and directs the airflow carrying the transported seed or fertilizer before it is distributed into the individual seed hoses. It is located between the fan and the distributor head. The designation D135 refers to the internal diameter of the metal diffuser-funnel.

Main functions of the diffuser:

• Slows down and stabilizes the airflow.
• Ensures even distribution of air carrying seed or fertilizer.
• Reduces turbulence in the piping system.
• Improves metering accuracy and sowing uniformity.
• Helps prevent uneven filling of individual hoses.

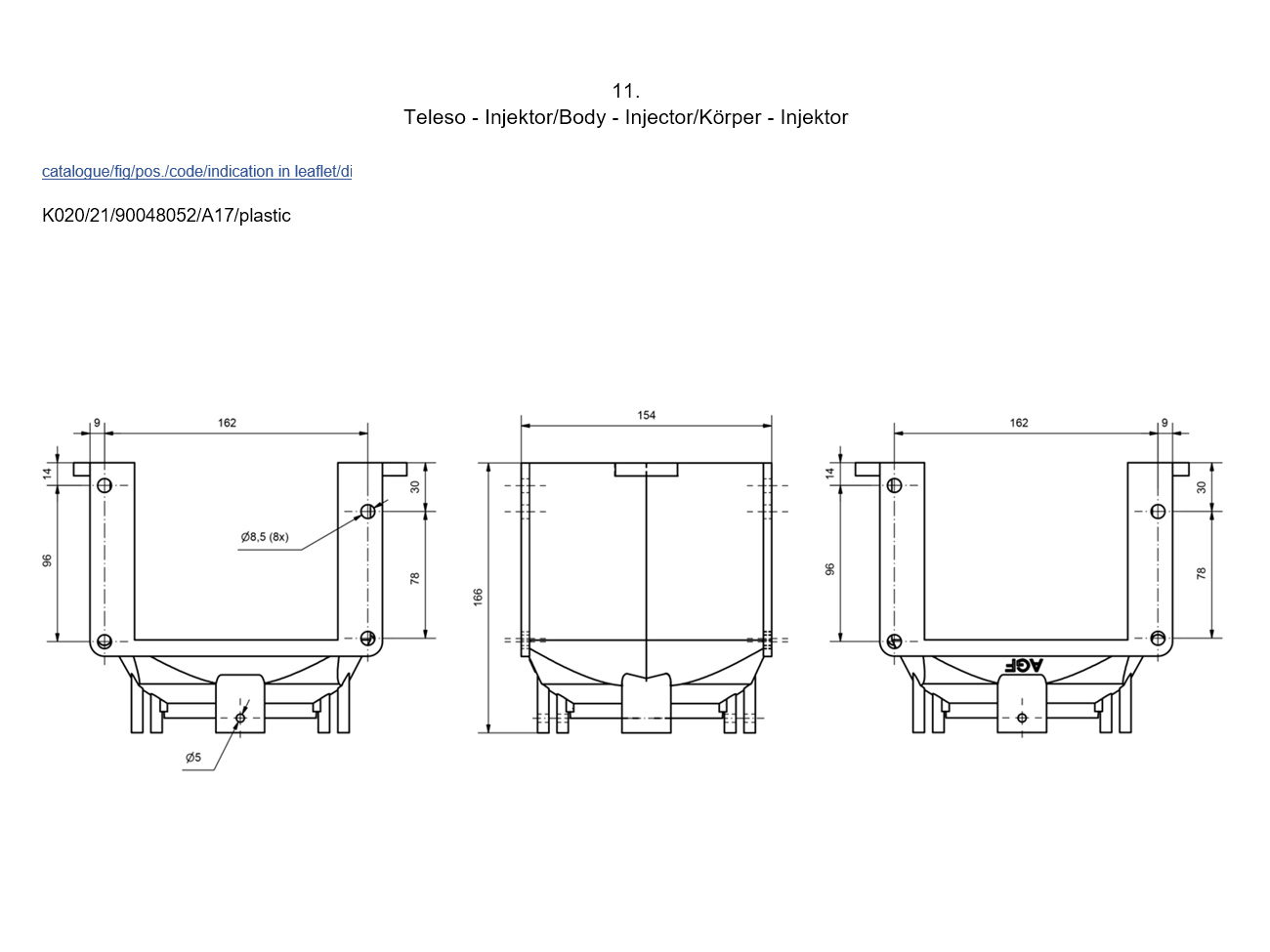

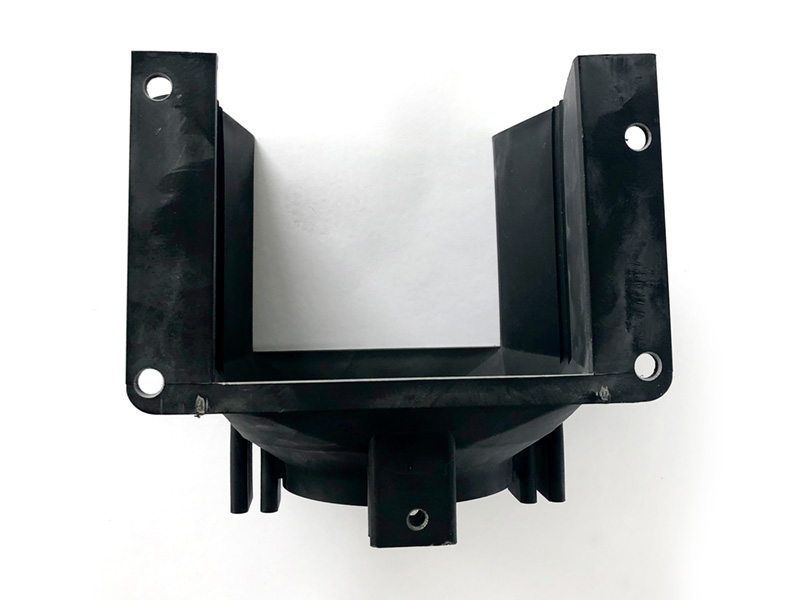

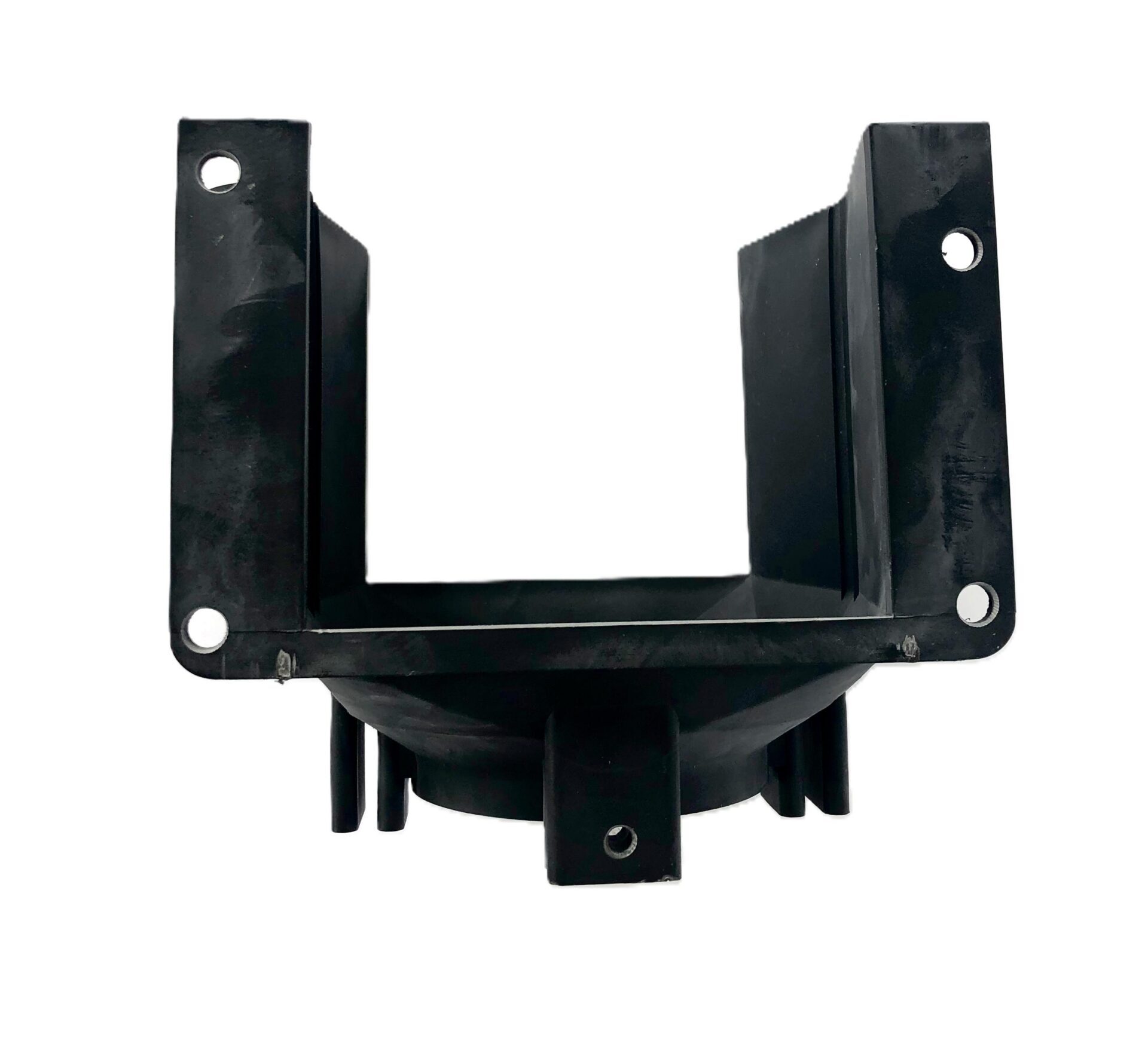

Injector

It is a device that introduces seed or fertilizer into the airflow generated by the fan. It is the point where the metered material is mixed with the air and then transported through the piping system to the distributor head and seed coulters.

Main functions of the injector:

• Introduces seed or fertilizer into the airflow.
• Ensures a smooth transition of material into the pneumatic conveying system.
• Minimizes seed damage during transport.
• Reduces the risk of blockages in the conveying system.

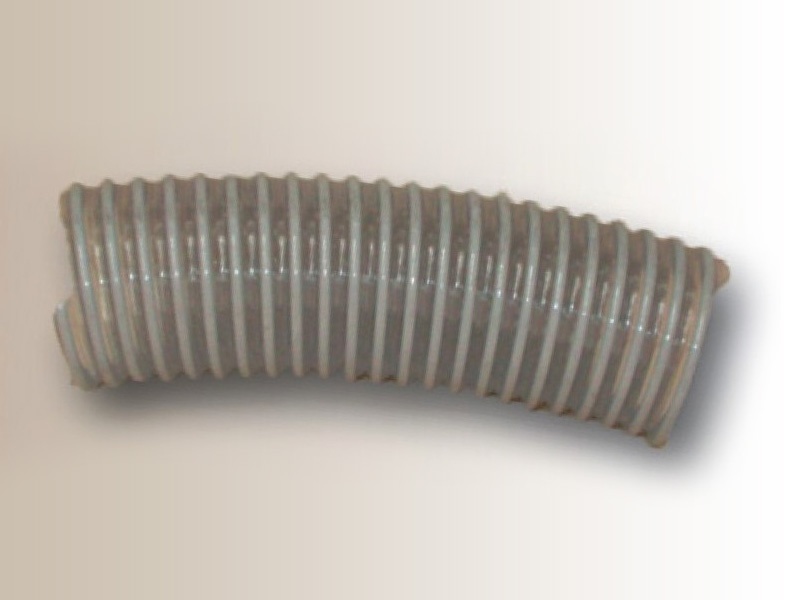

 Hose Ø100

Hose Ø100 mm is  mainly used for conveying and distributing air between the fan, distributor , and other components of the system.

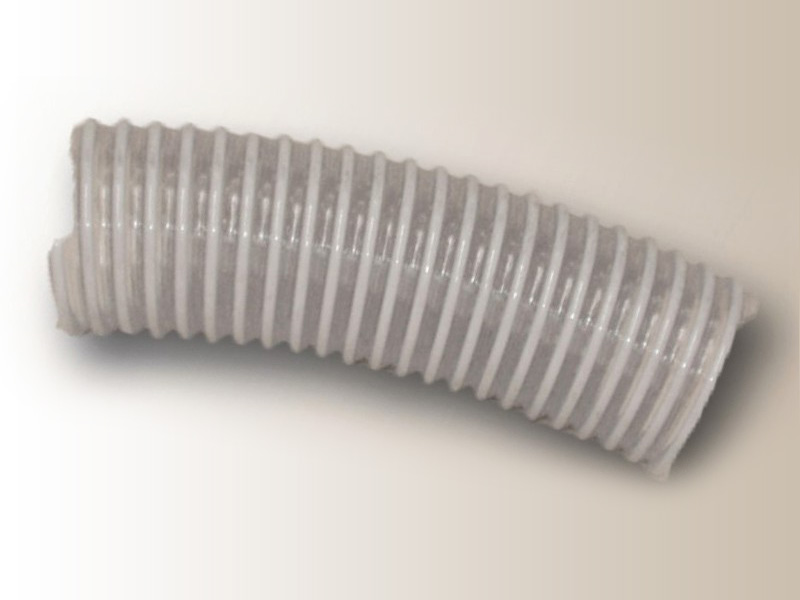

 Hose Ø130

Hose Ø130 mm is mainly used for conveying and distributing air between the fan, distributor, and other components of the system.

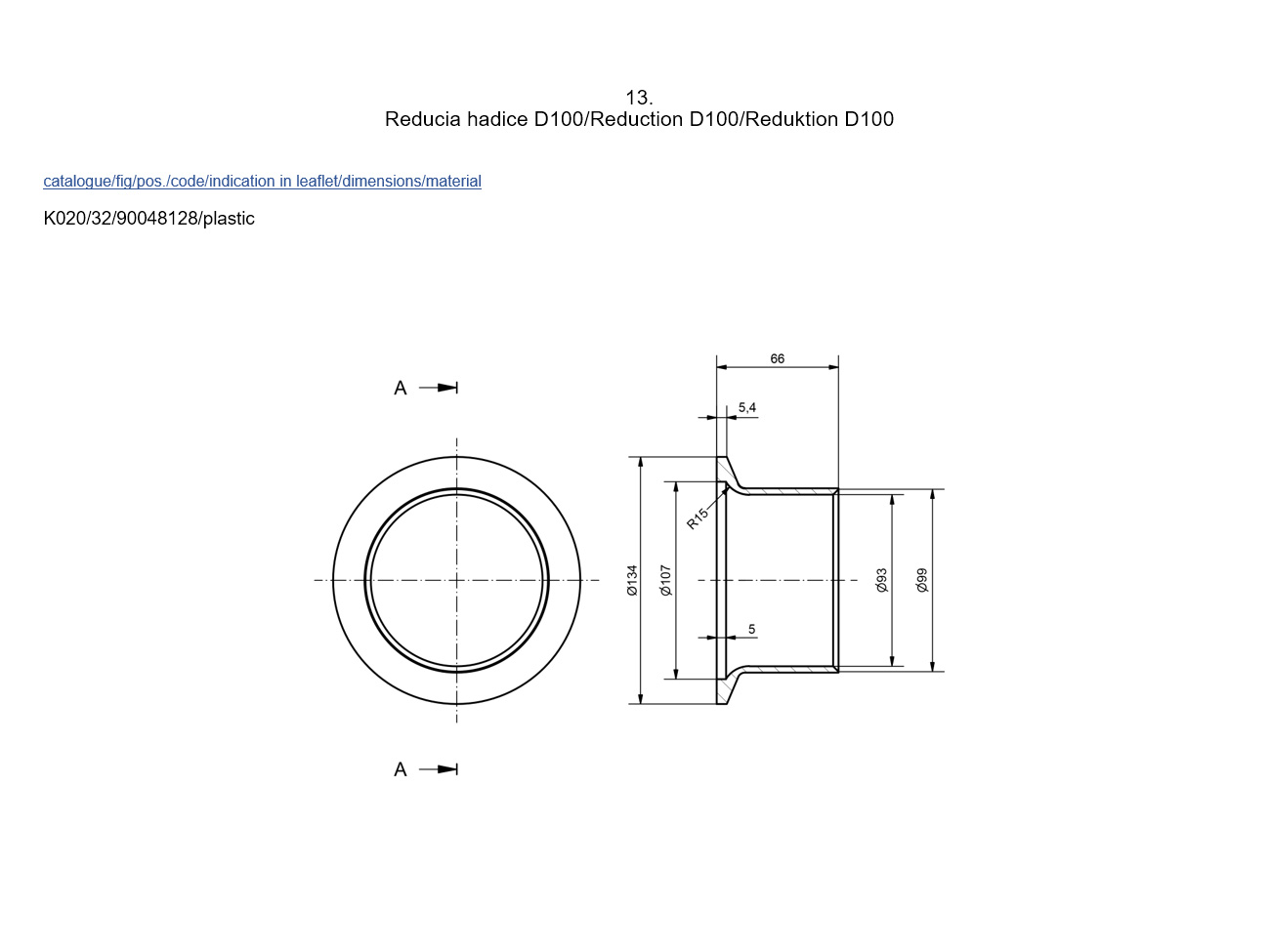

Reduction of hose Ø100

It is a connecting piece between the VEN D260 fan and the Ø100 hose for air distribution in the system.

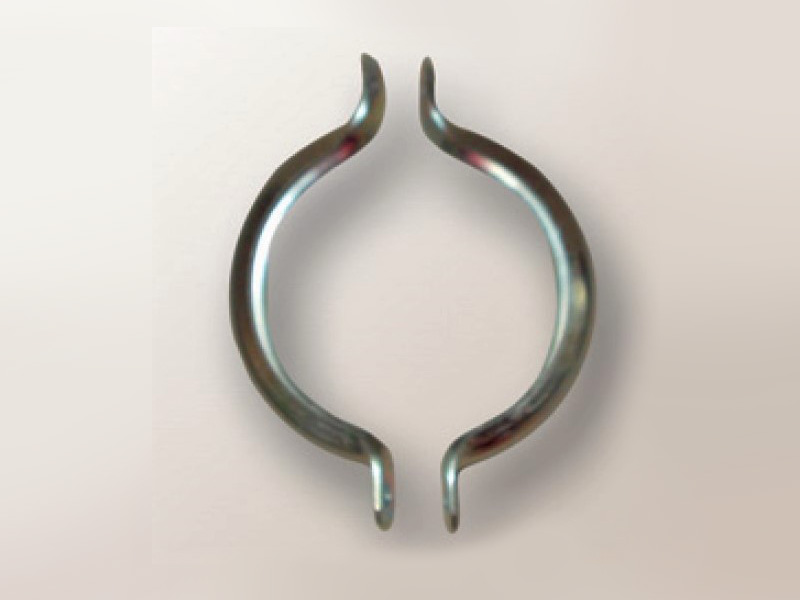

Sleeve stainless

.

It is used as a clamping component between the Ø106 tube  and the D260 fan with the Ø100 reduction

Clamping material

clip fí 36/fí 42, spur, sealing white, spring of sowing long/short, bush of hopper, plug of hopper, holder of elbow, bush 1, bush Accord

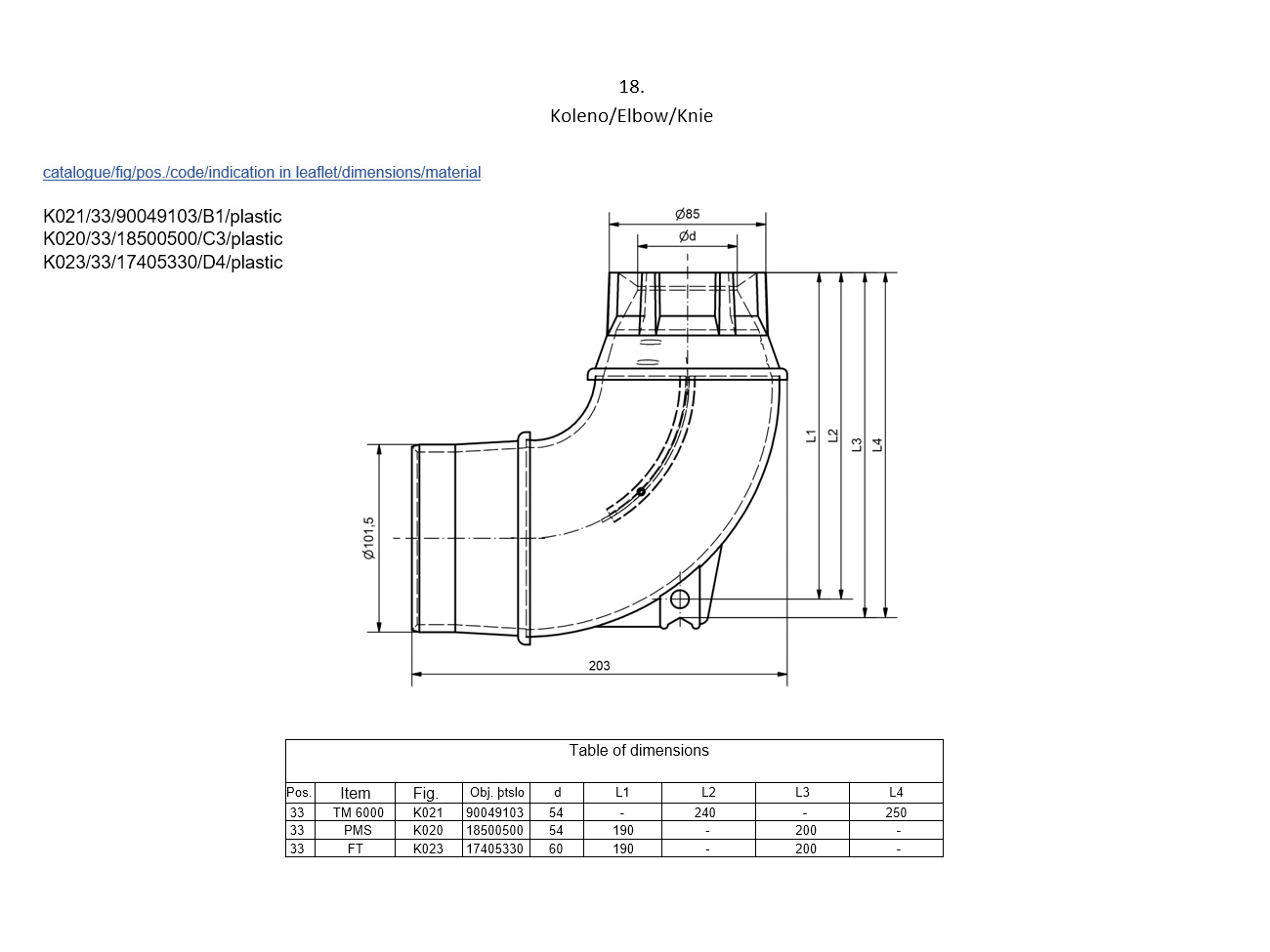

Elbow 3m Ø 55 plastic

The main function of the elbow in a pneumatic seeding system is to change the direction of the air and seed/fertilizer flow within the pneumatic distribution system. The plastic elbow with a diameter of 55 mm is used for seeding machines with a working width ranging from 3 m to 4.5 m.

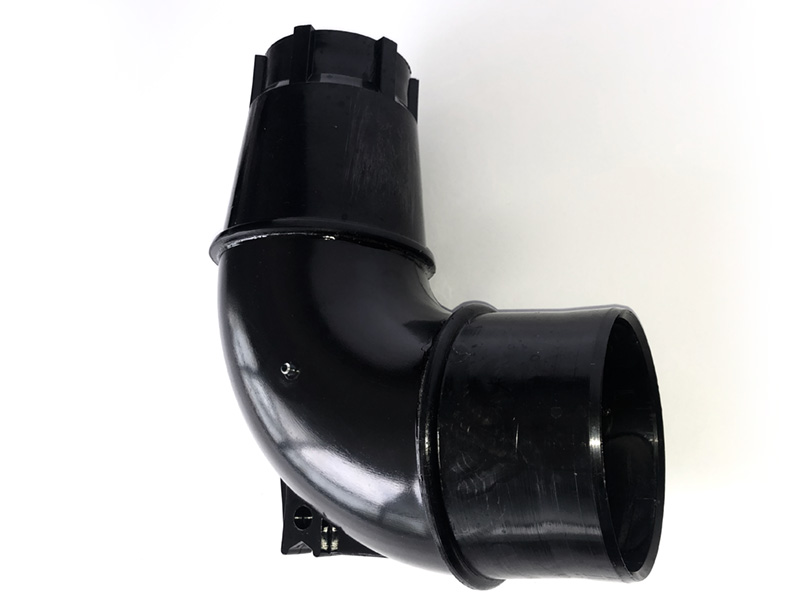

Elbow 6m Ø 55 plastic

The main function of the elbow in a pneumatic seeding system is to change the direction of the air and seed/fertilizer flow within the pneumatic distribution system. The plastic elbow with a diameter of 55 mm is used for seeding machines with a working width ranging from 6 m to 8 m.

Elbow 3m Ø 60 plastic

The main function of the elbow in a pneumatic seeding system is to change the direction of the air and seed/fertilizer flow within the pneumatic distribution system. The plastic elbow with a diameter of 60 mm is used for seeding machines with a working width ranging from 3 m to 4.5 m with fertilizing .

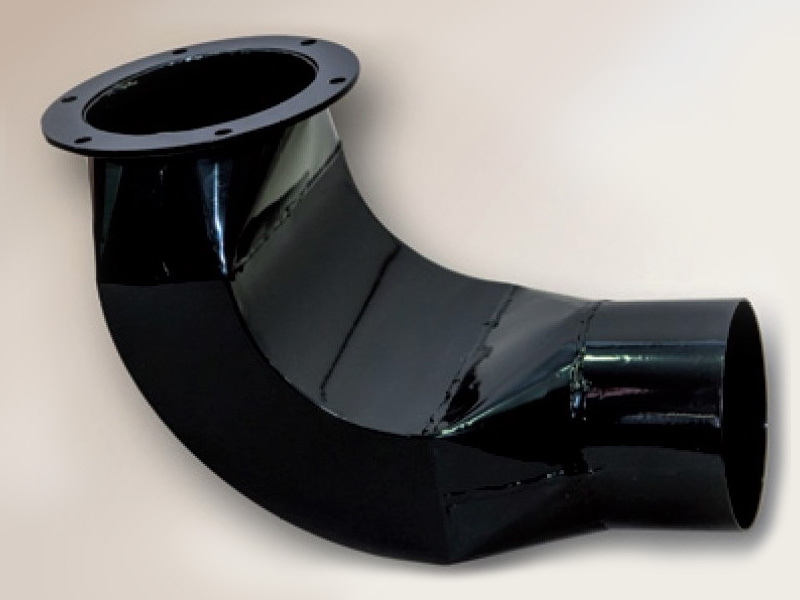

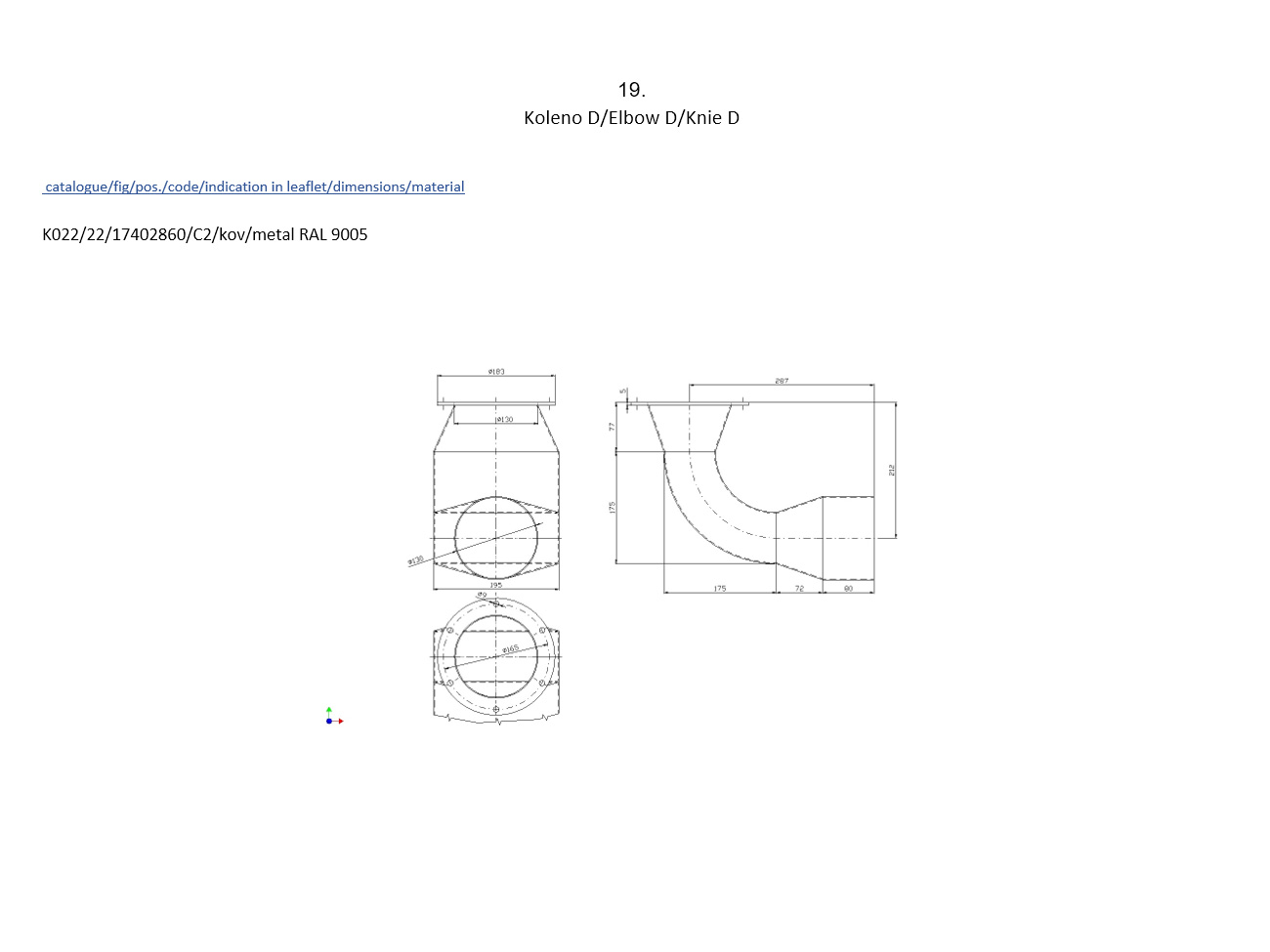

Elbow D Ø 130 metal

The main function of the elbow in a pneumatic seeding system is to change the direction of the air and seed/fertilizer flow within the pneumatic distribution system. The metal  elbow with a diameter of 130 mm is used for seeding machines with a working width ranging from 3 m to 4.5 m front tank systeme FT (front mounted hopper ) .

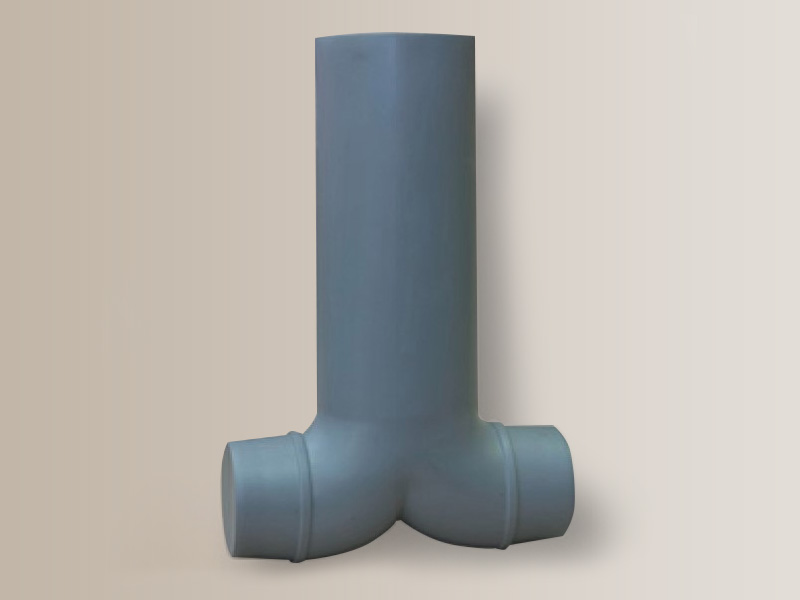

Double elbow plastic

It is used to connect two sowing circuits for a 6 m working width machine with two hoppers.

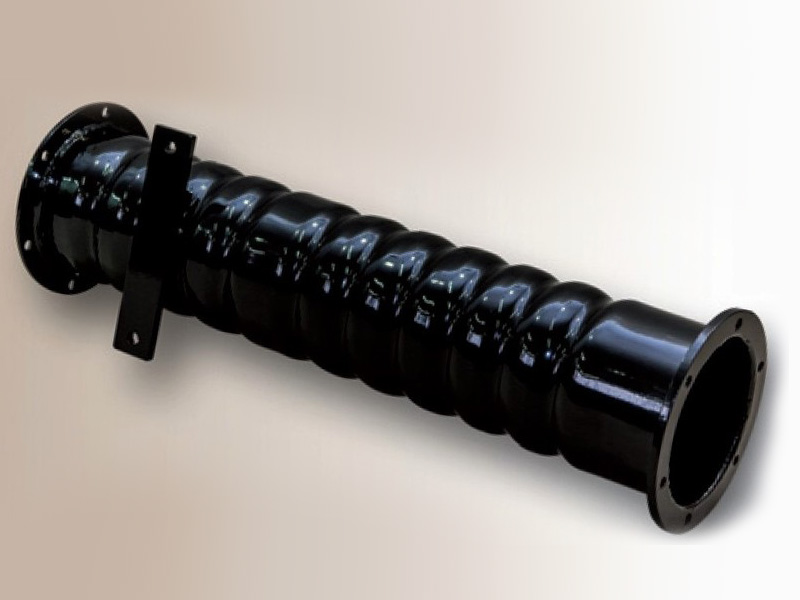

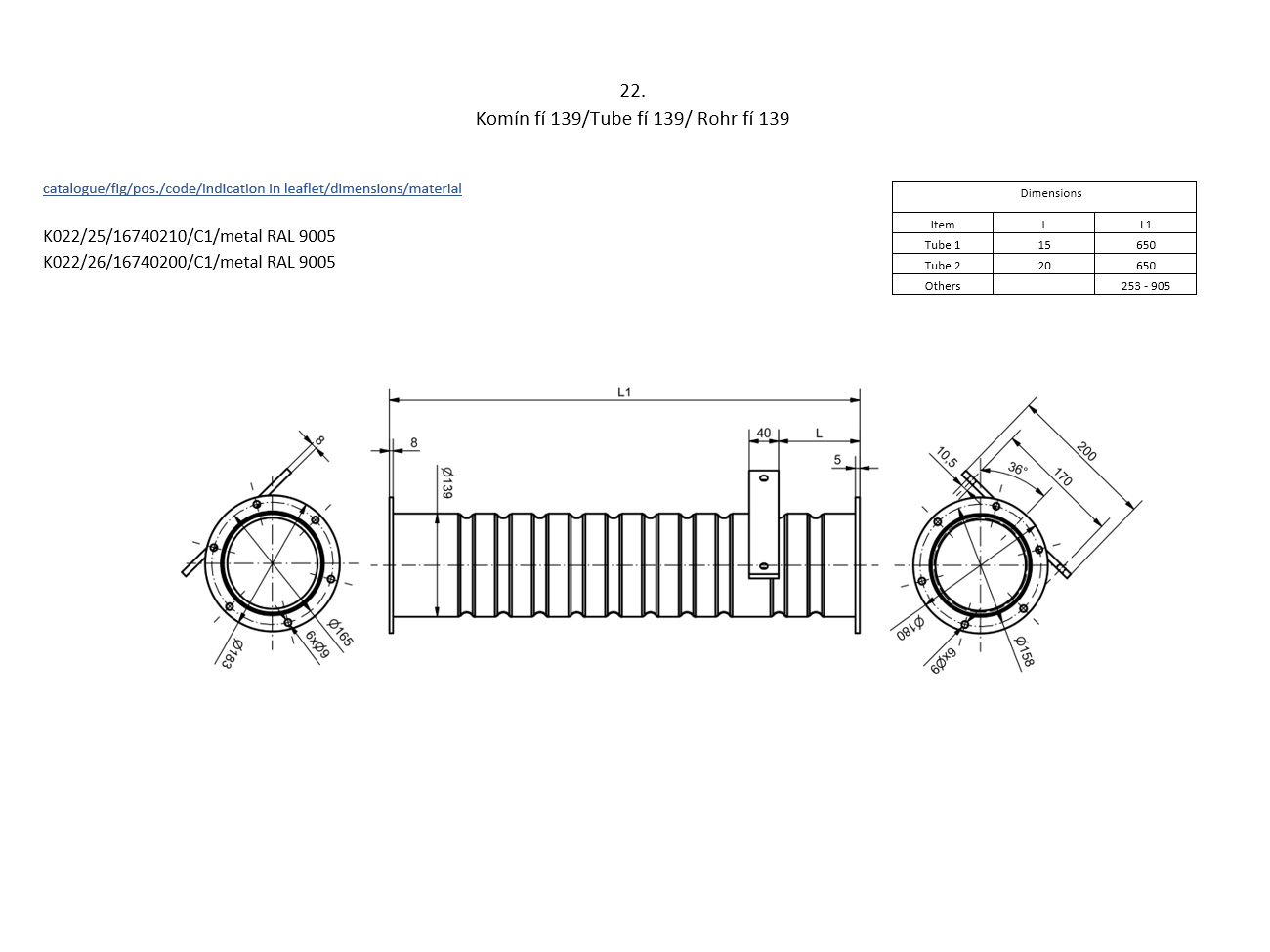

Tube Ø 135  metal

The tube beneath the distributor is used to guide the seed or fertilizer from the distributor into the seeding hoses. The marking Ø135 indicates the inner diameter of tube.

Tube Ø 135 metal

The tube beneath the distributor is used to guide the seed or fertilizer from the distributor into the seeding hoses. The marking Ø135 indicates the inner diameter of tube.

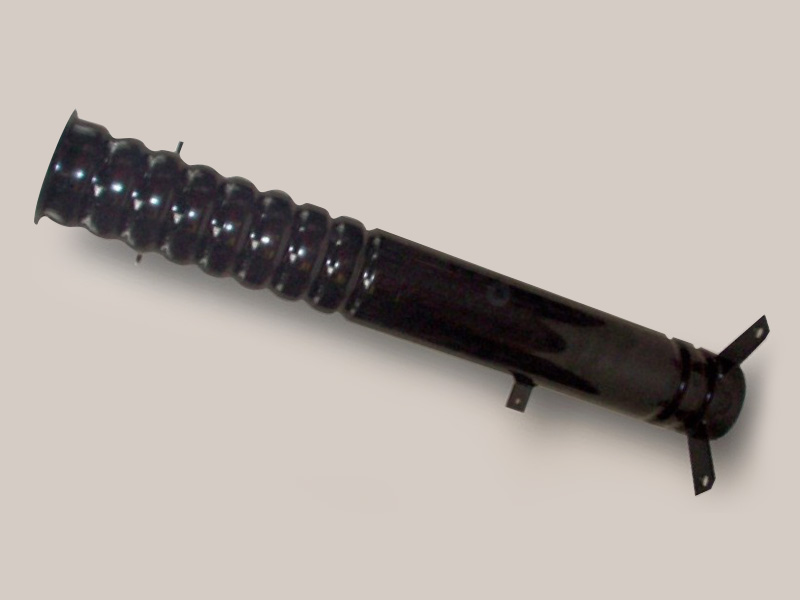

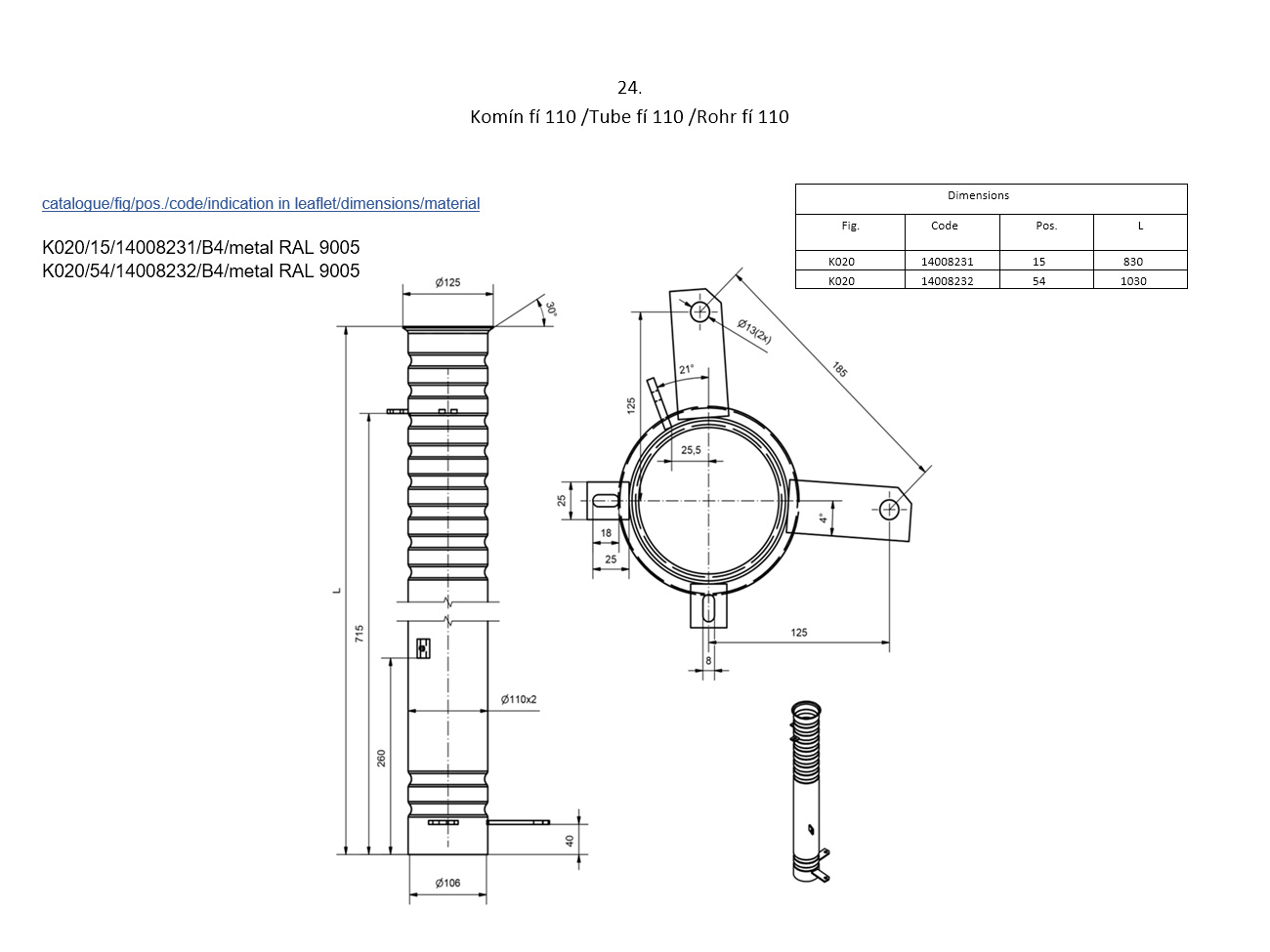

Tube Ø106 metal

The tube beneath the distributor is used to guide the seed or fertilizer from the distributor into the seeding hoses. The marking Ø106 indicates the inner diameter of tube.

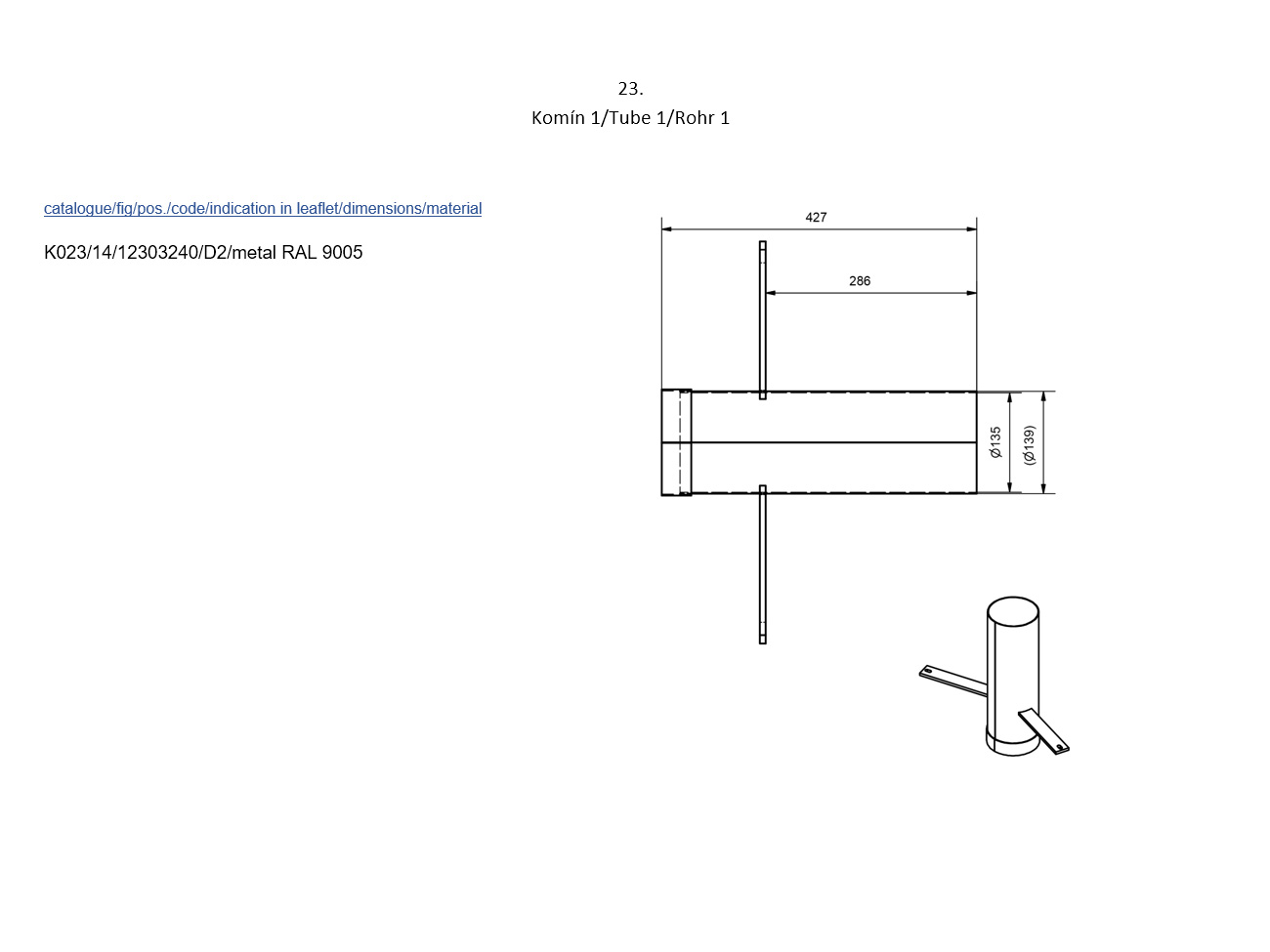

Tube Ø135 metal

The tube beneath the distributor is used to guide the seed or fertilizer from the distributor into the seeding hoses. The marking Ø135 indicates the inner diameter of tube.

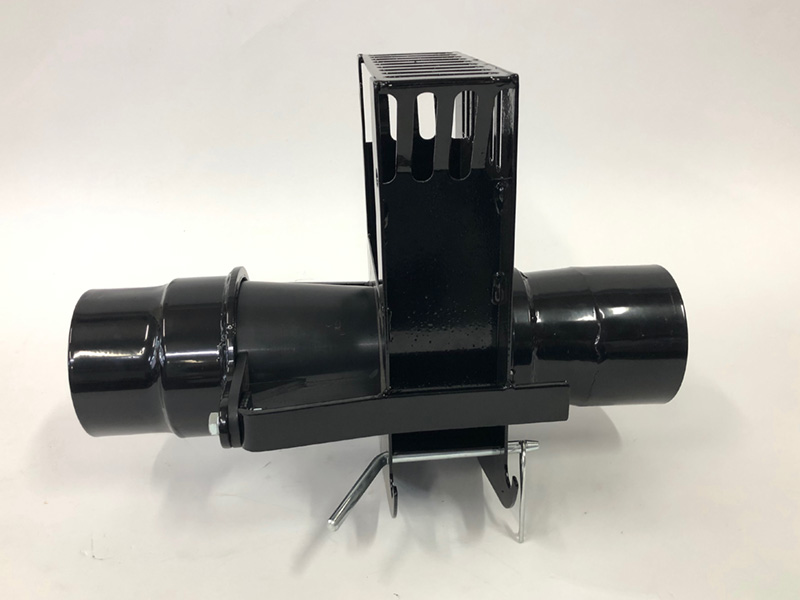

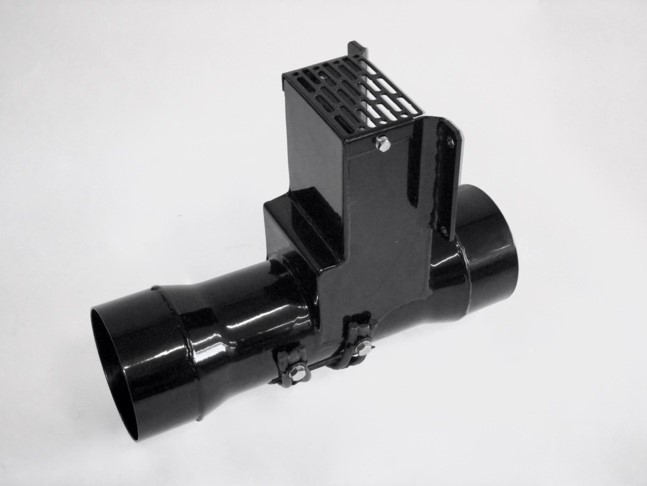

Horizontal injection node HIU – 4G (it fullly substitutes Ø100 and Ø135)

The horizontal injection node type HIU – 4G is an important component of the dosing-transport MISTRAL air system, which provides conditions for efficient transport of metered seed / fertilizer through sowing hoses and subsequently sowing units into the soil. With its construction, it significantly increases the transport performance of the entire MISTRAL dosing – air sowing system. Due to the orientation of the HIU – 4G relative to the position of the dosing unit, its design can be with different rotation of its connecting flange.

We can provide more detailed information on request.

Mechanical valve RK 98

It is used to direct or shut off the airflow in individual branches of the distribution system.

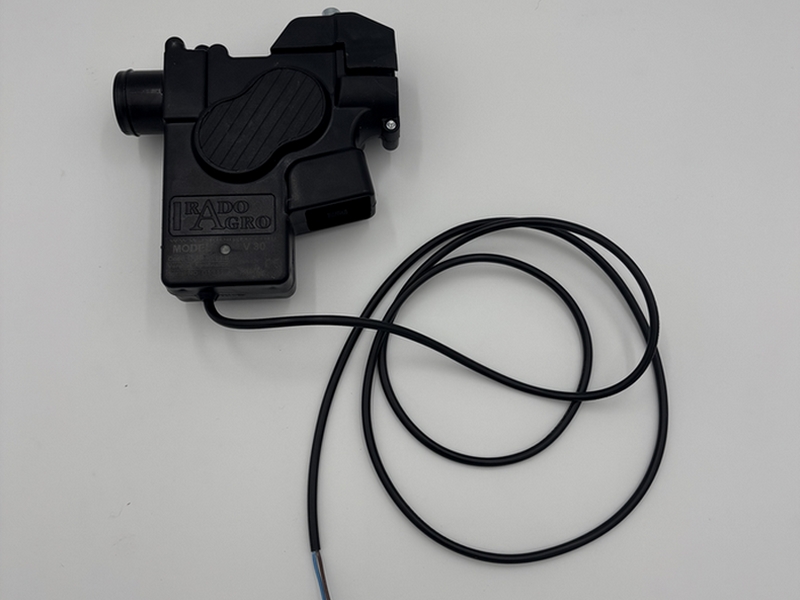

Electronic valve V30

It is designed for pneumatic seed drills and is mounted on a distributor with an internal hose diameter of 32 mm. The connection is made using a two-core or three-core cable with a standard length of 2 m. This type of flap is used to shut off the seed flow

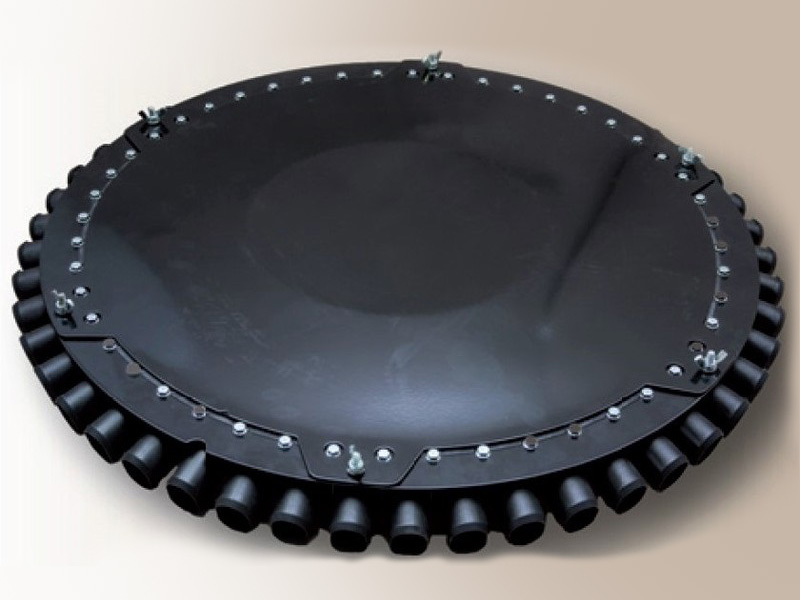

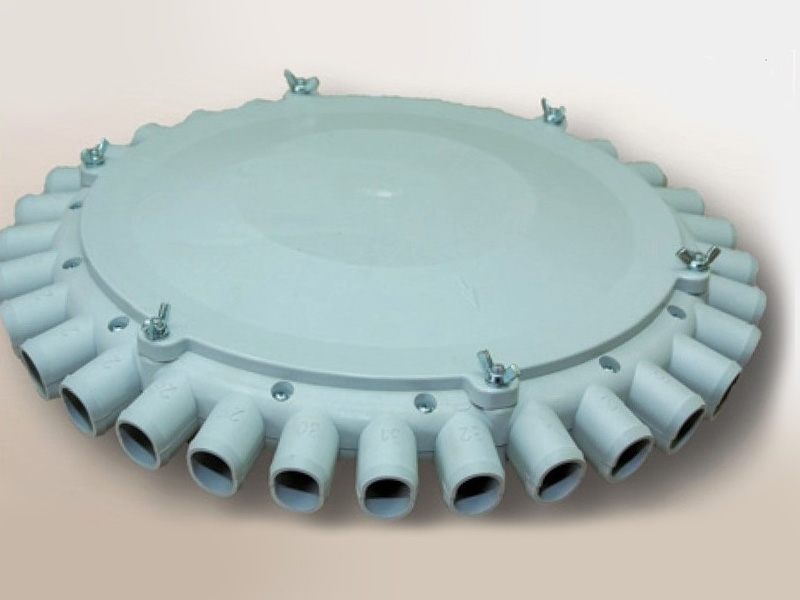

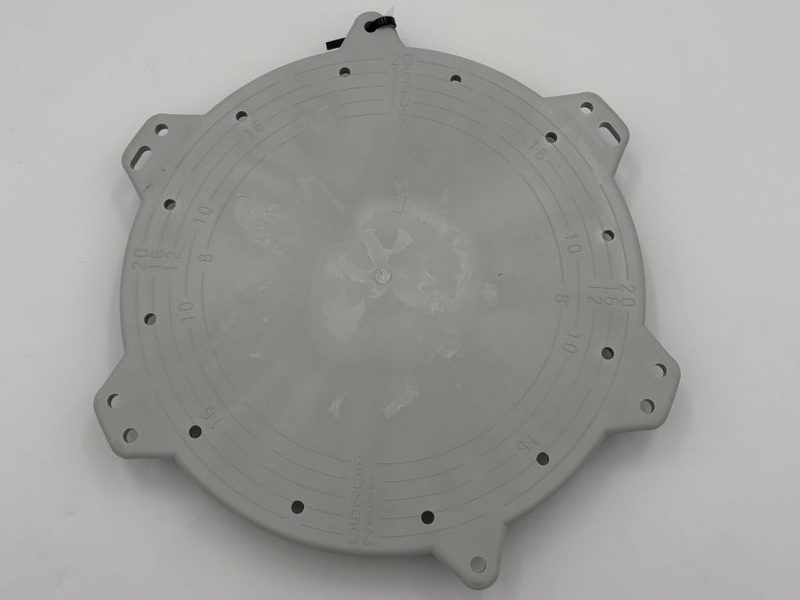

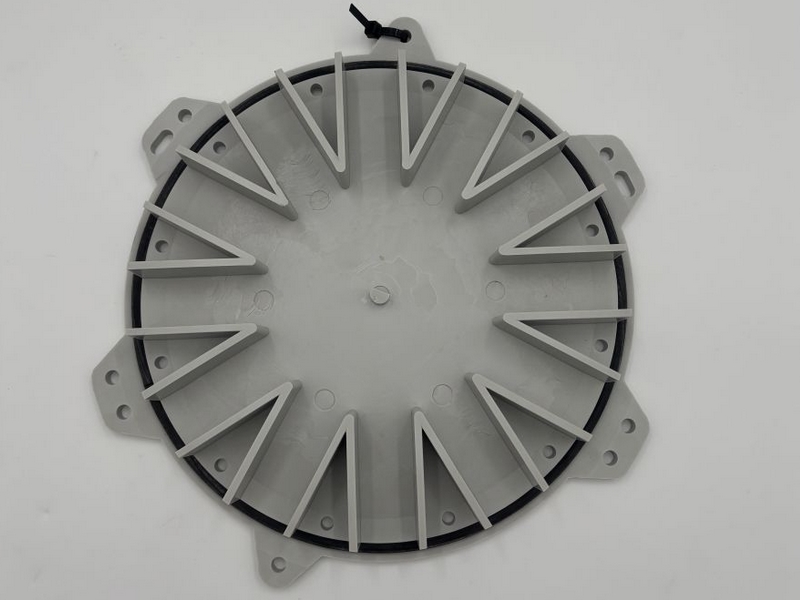

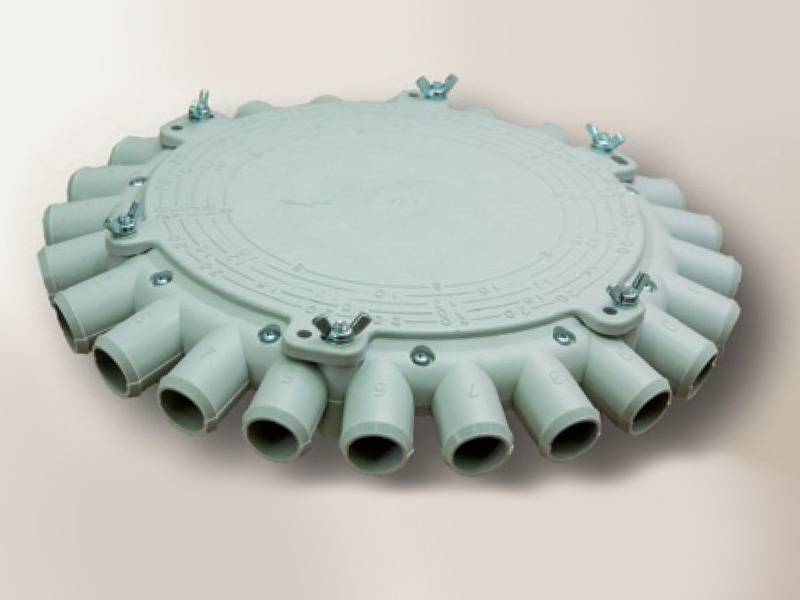

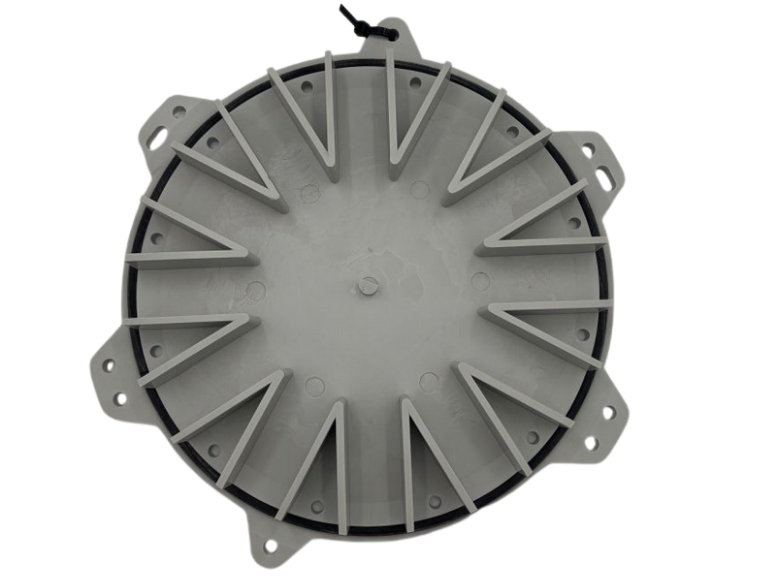

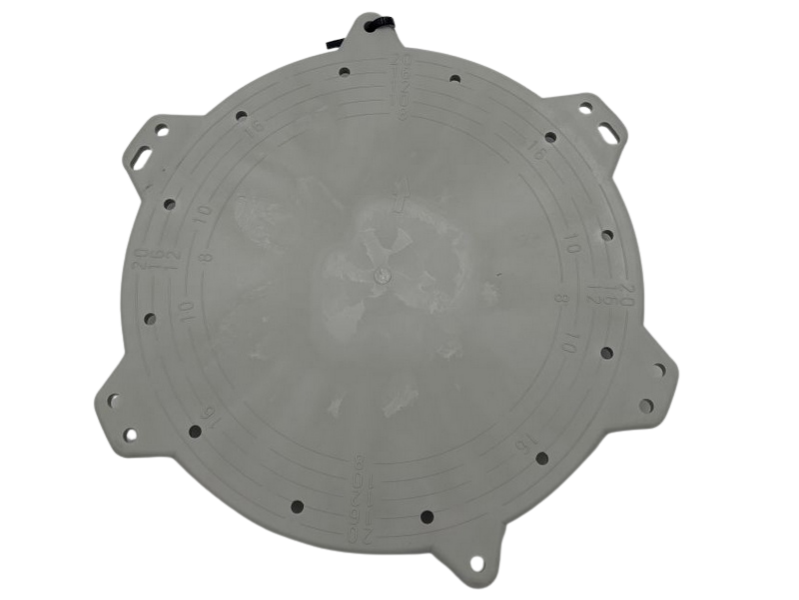

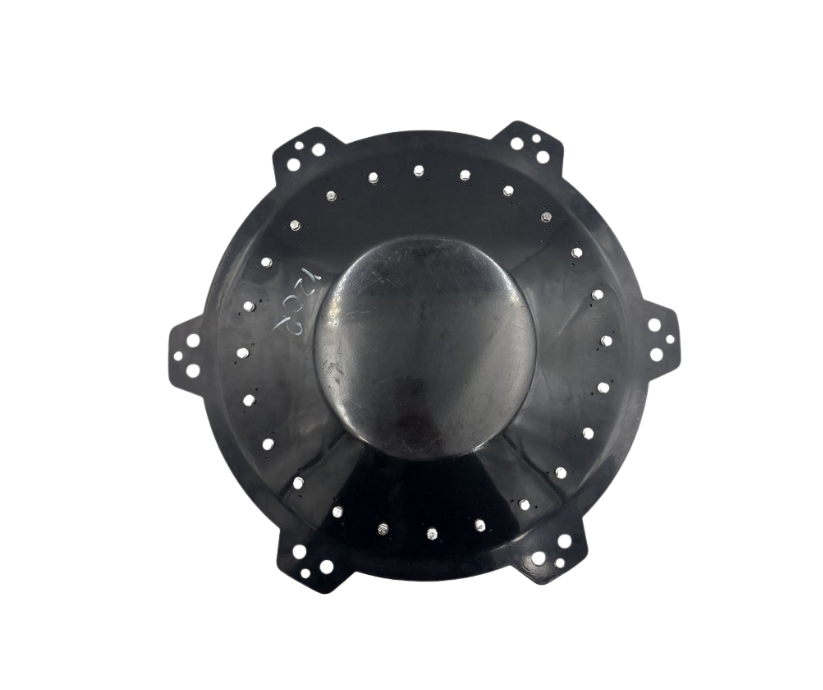

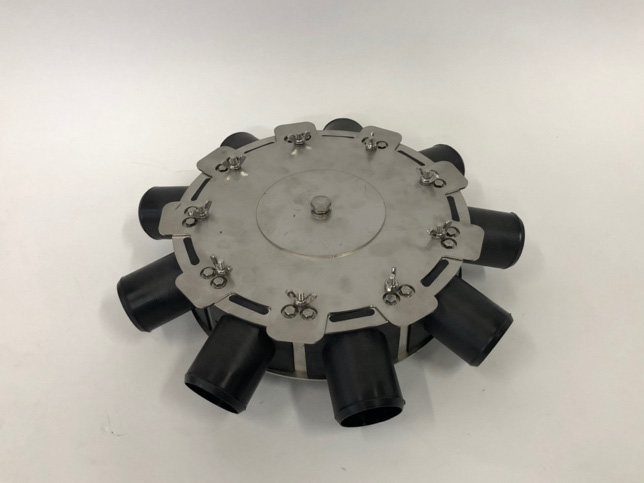

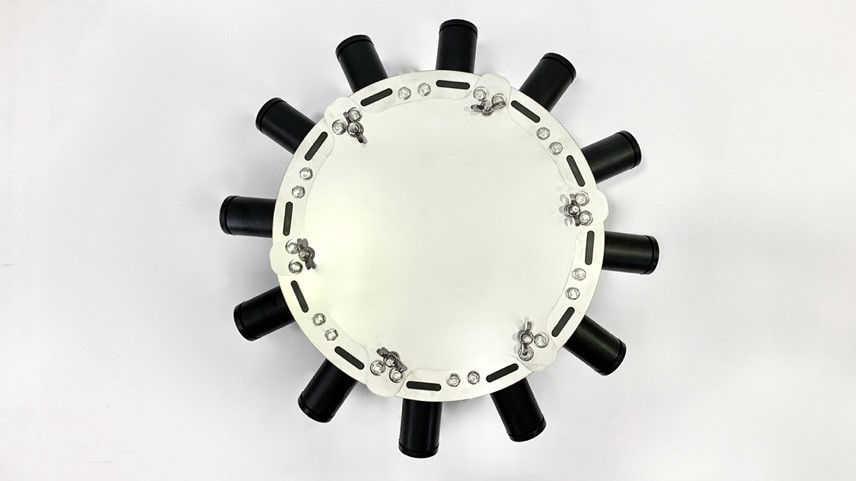

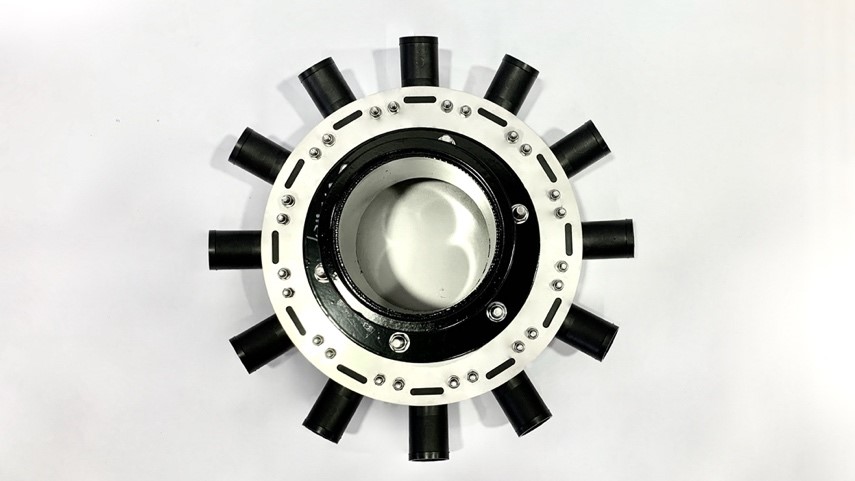

Distributor Cover 24/12 – plastic

The specified 24/12 cover is made of plastic and is used to close every second sowing outlet, disabling every second sowing unit or seed opening in order to change the row spacing.

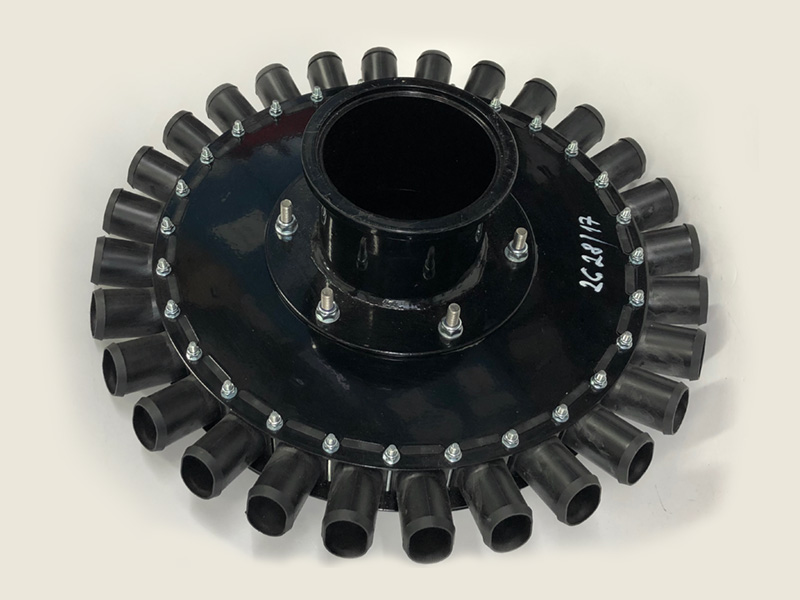

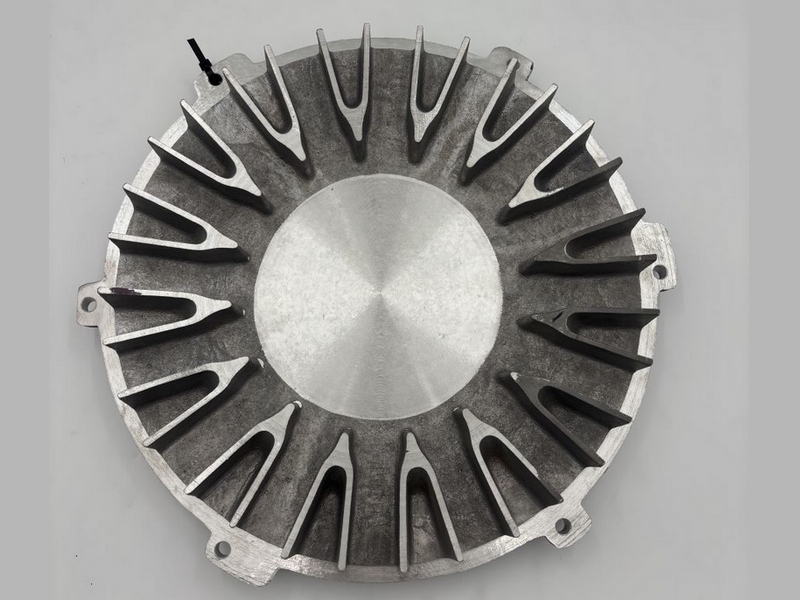

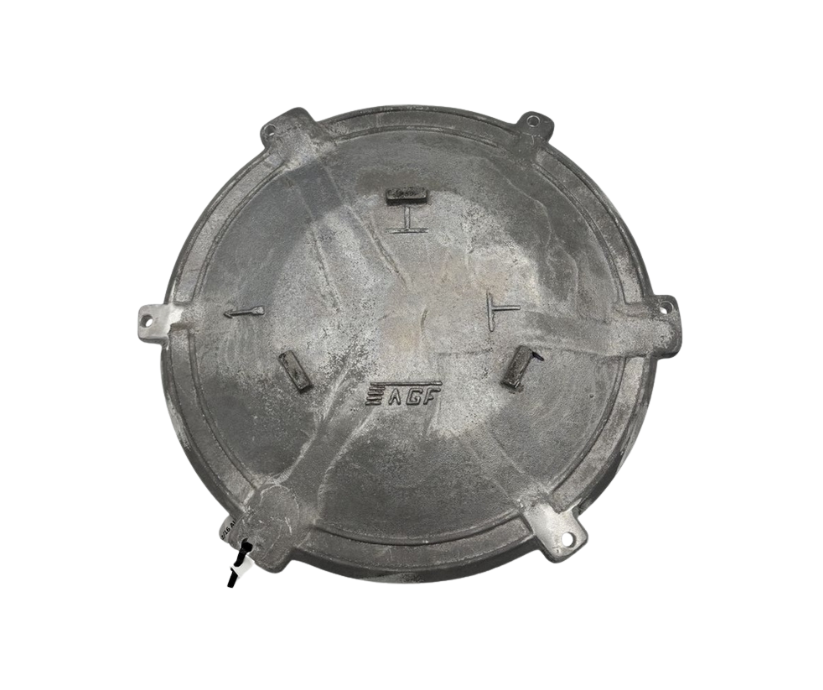

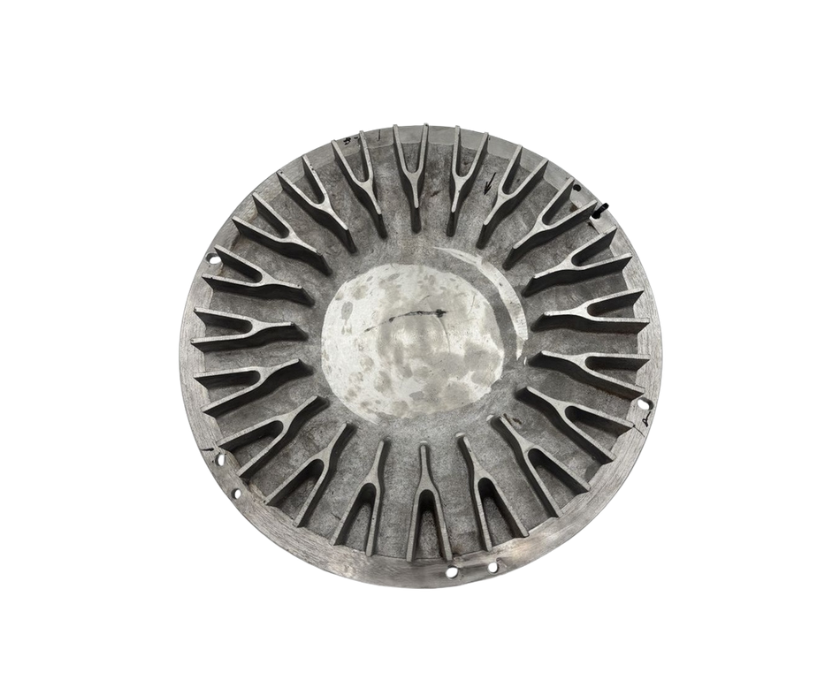

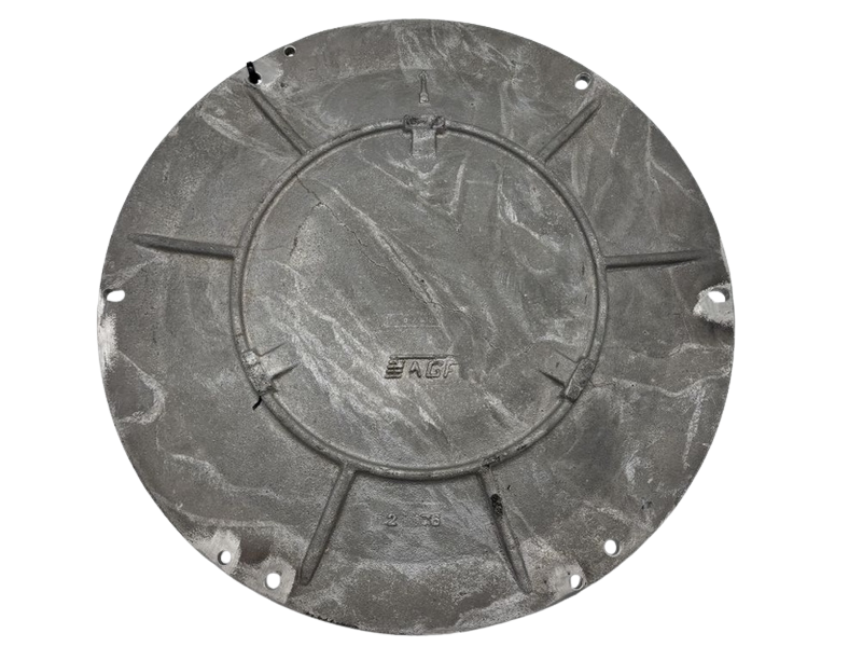

Distributor Cover 32/16 – Al

The specified 32/16 cover is made of aluminium and is used to close every second sowing outlet, disabling every second sowing unit or seed opening in order to change the row spacing.

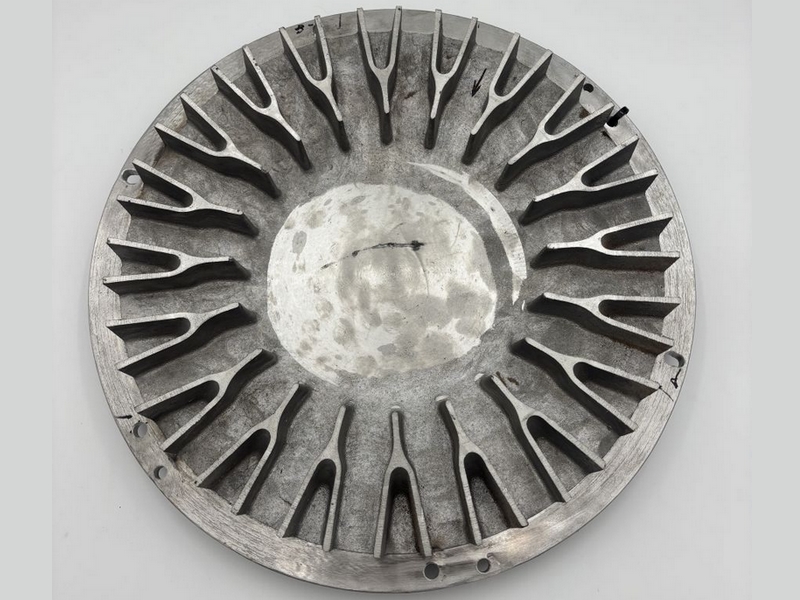

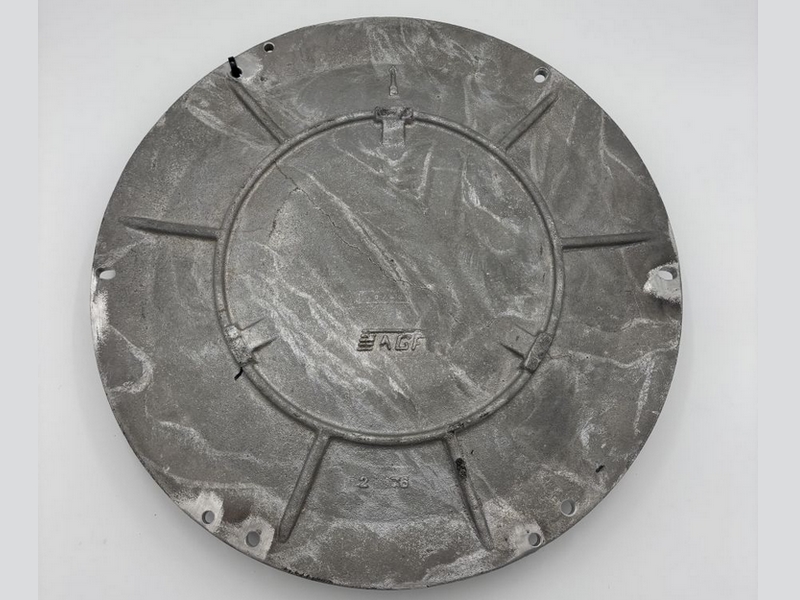

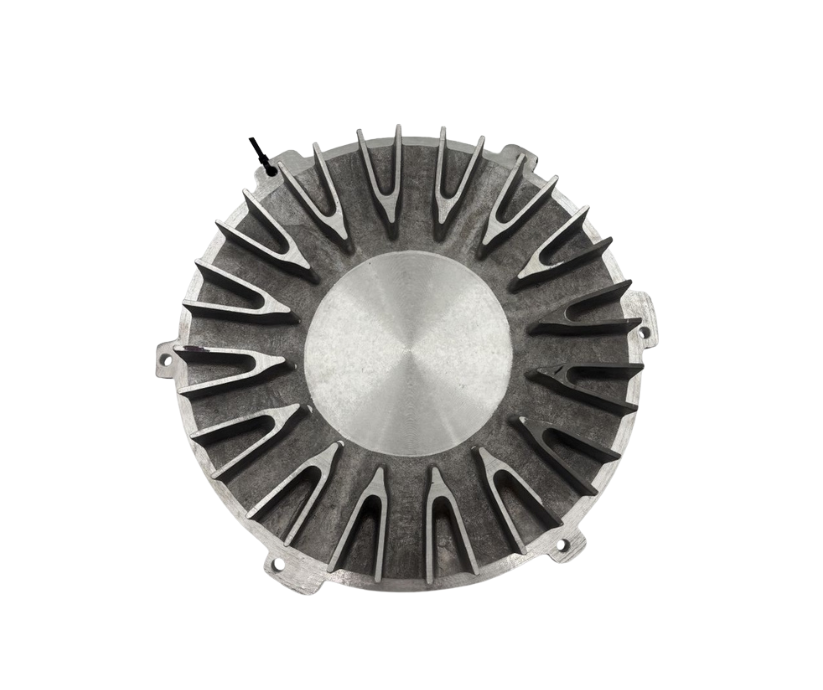

Distributor Cover 40/20 Al

The specified 40/20 cover is made of aluminium and is used to close every second sowing outlet, disabling every second sowing unit or seed opening in order to change the row spacing.

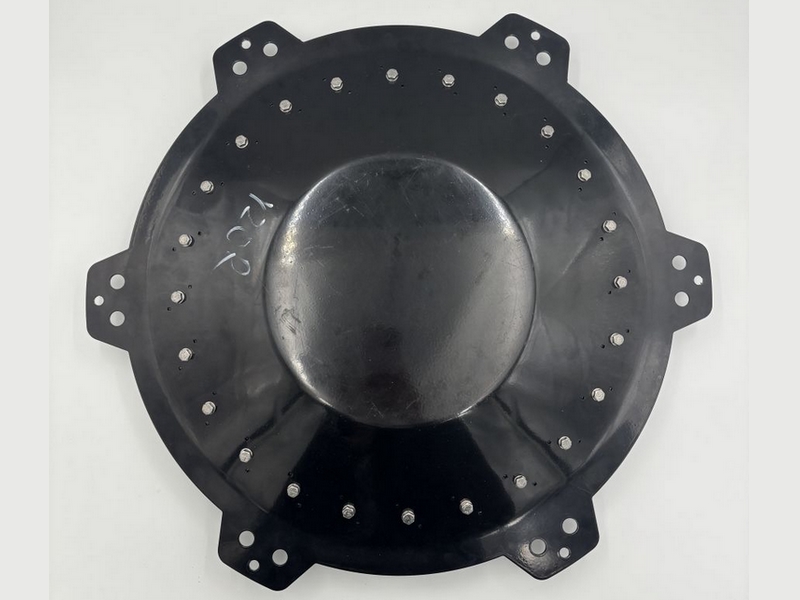

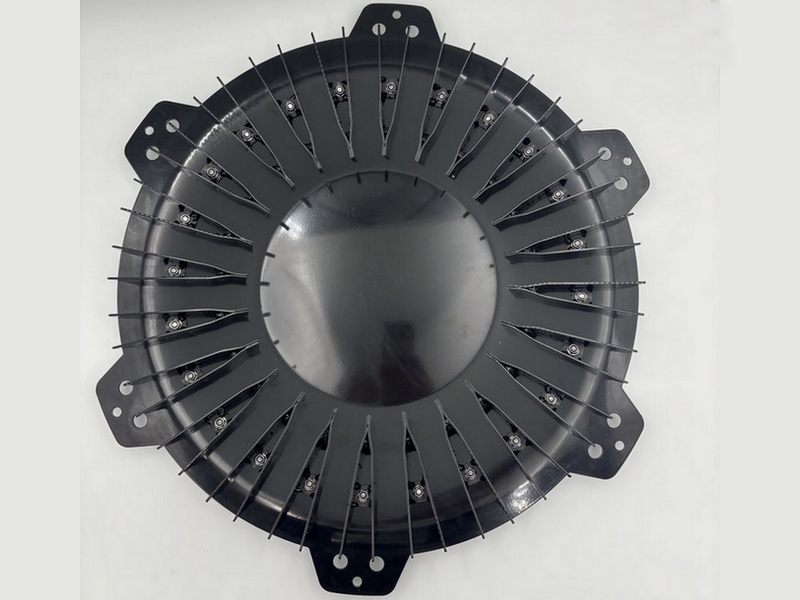

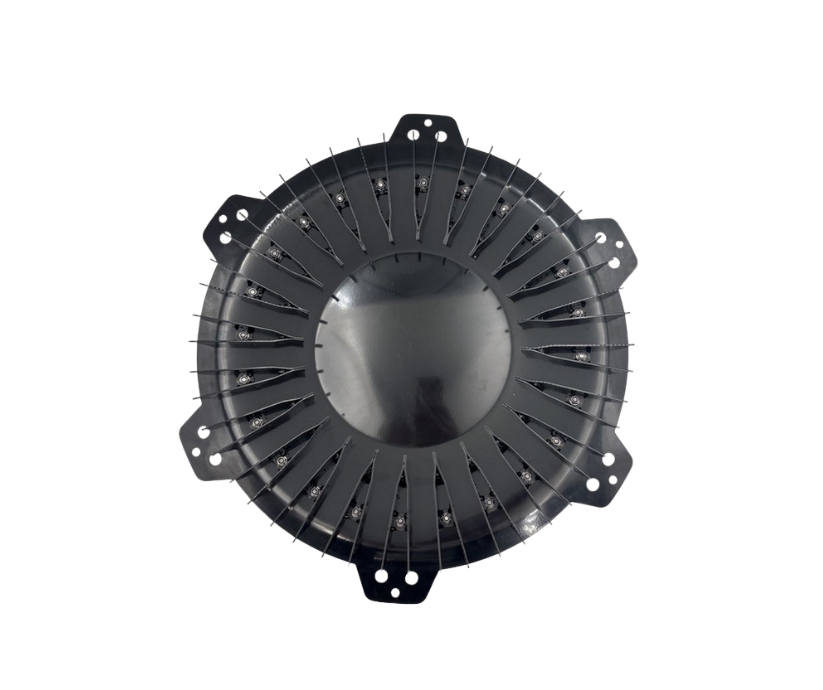

Distributor Cover 48/24 metal RAL 9005

The specified 48/24 cover is made of metal and is used to close every second sowing outlet, disabling every second sowing unit or seed opening in order to change the row spacing.

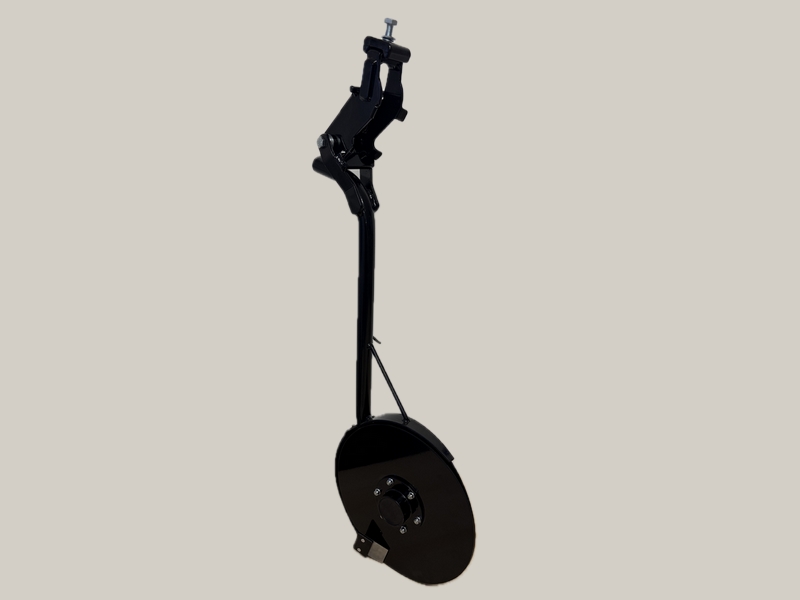

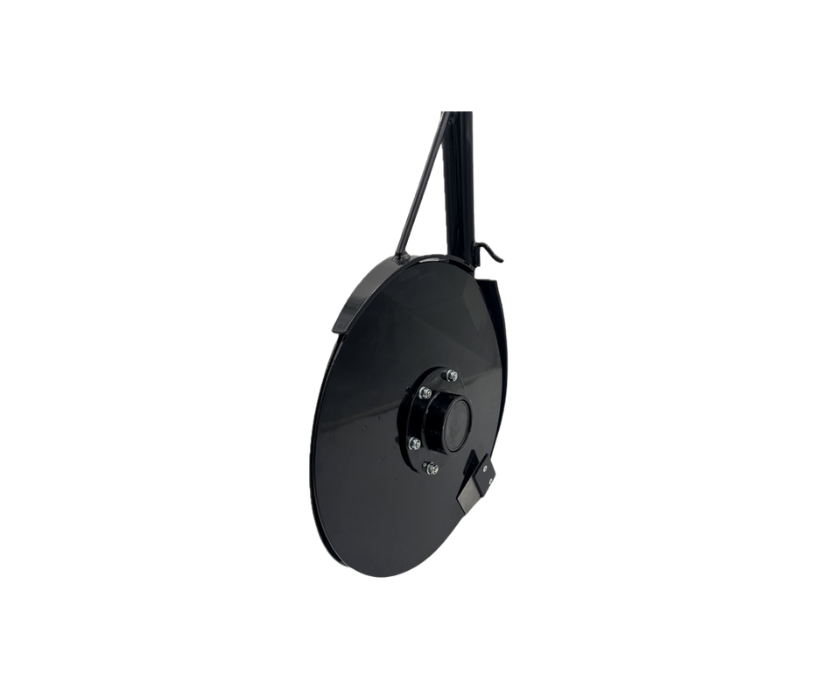

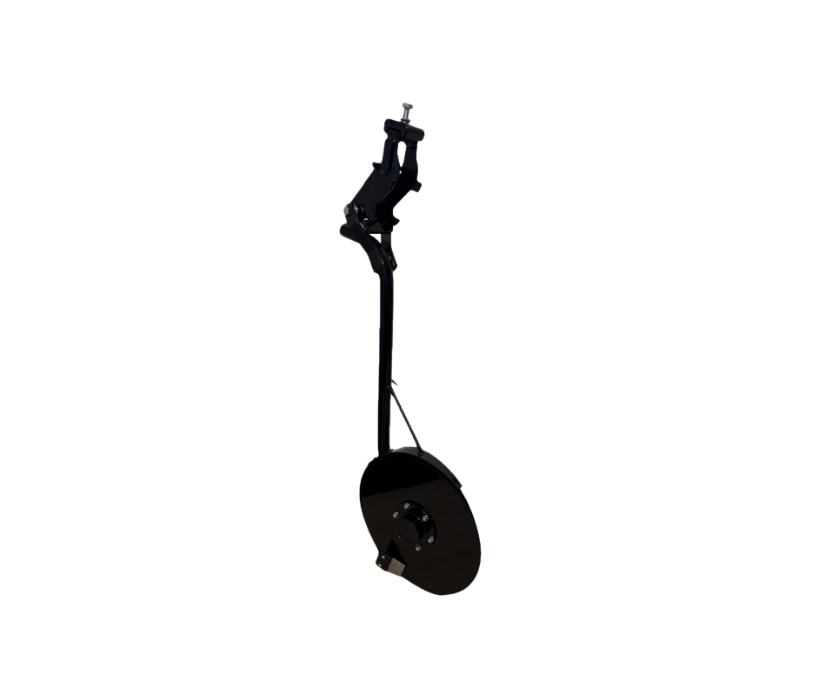

Double disc sowing unit

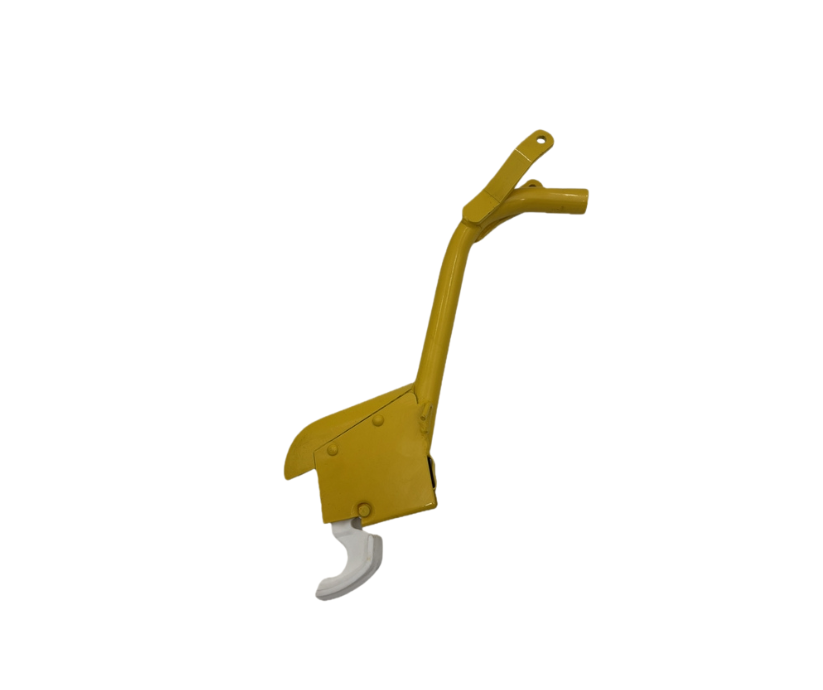

Suffolk sowing unit

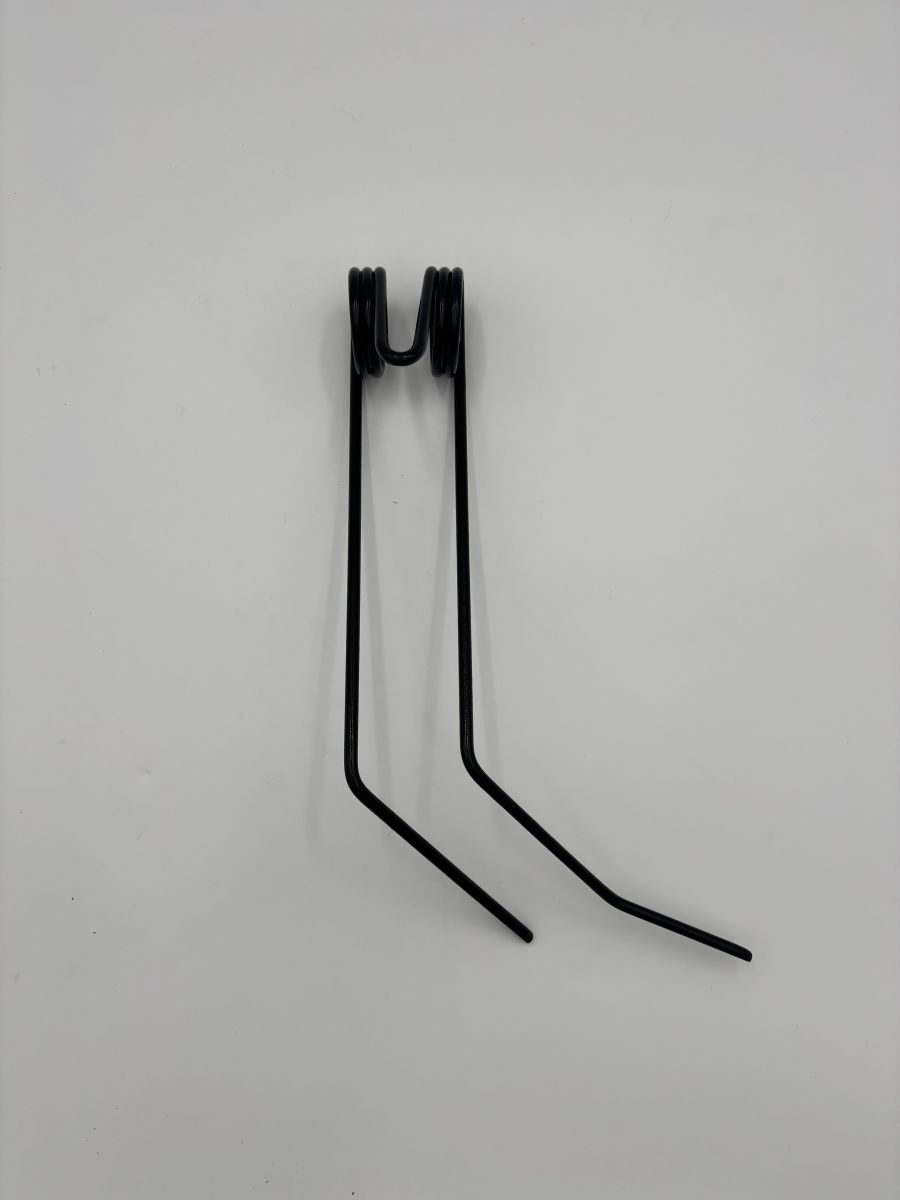

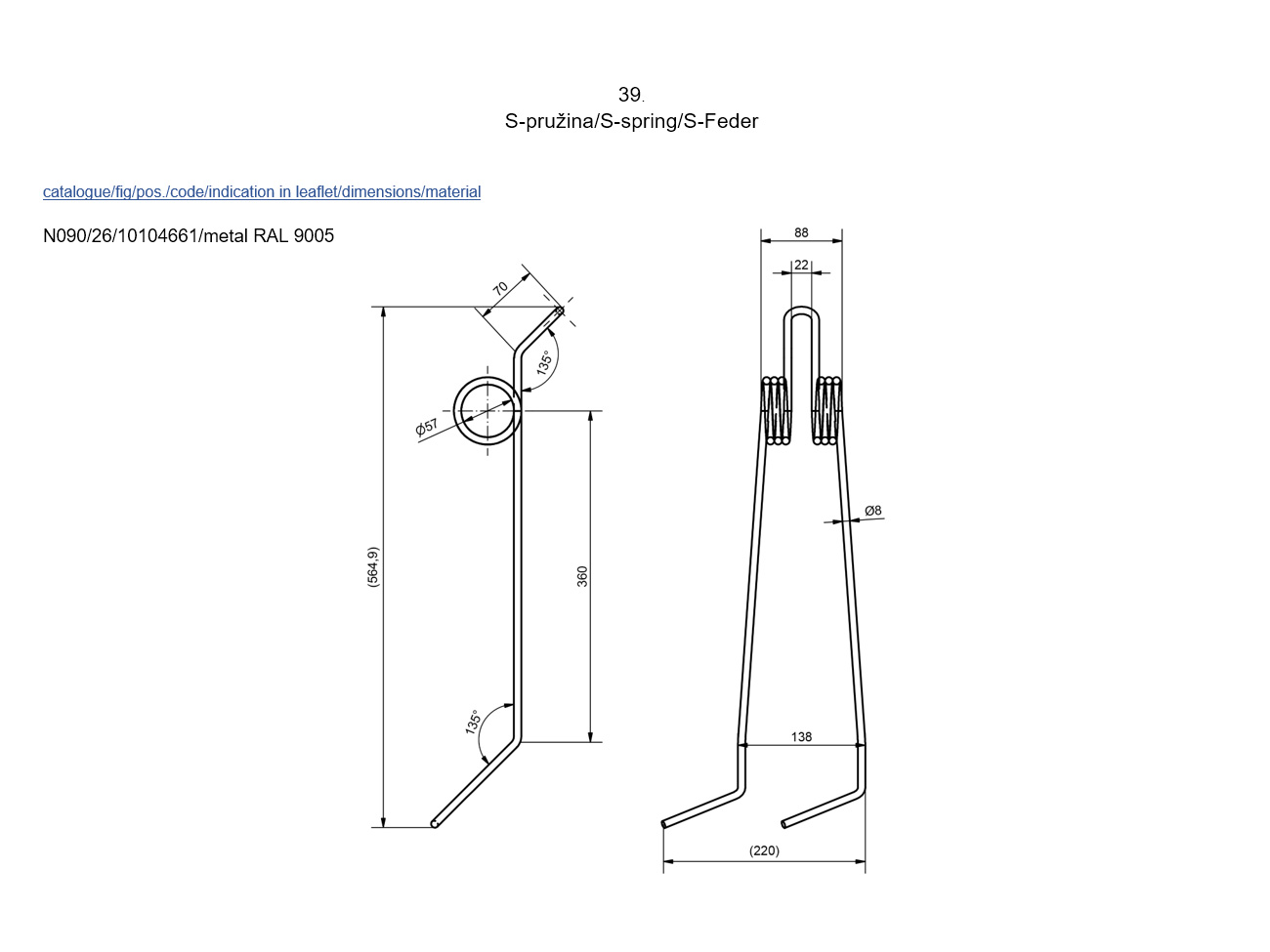

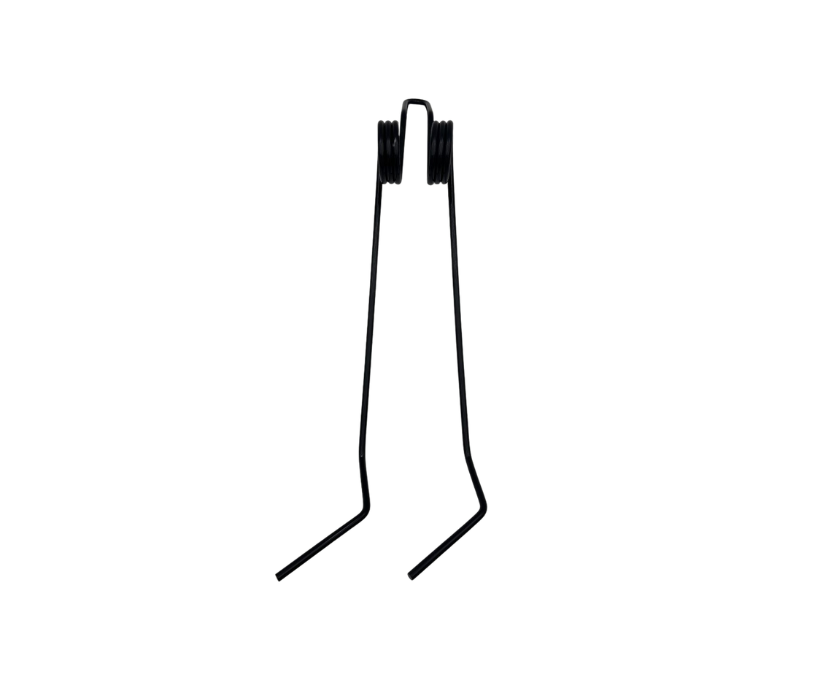

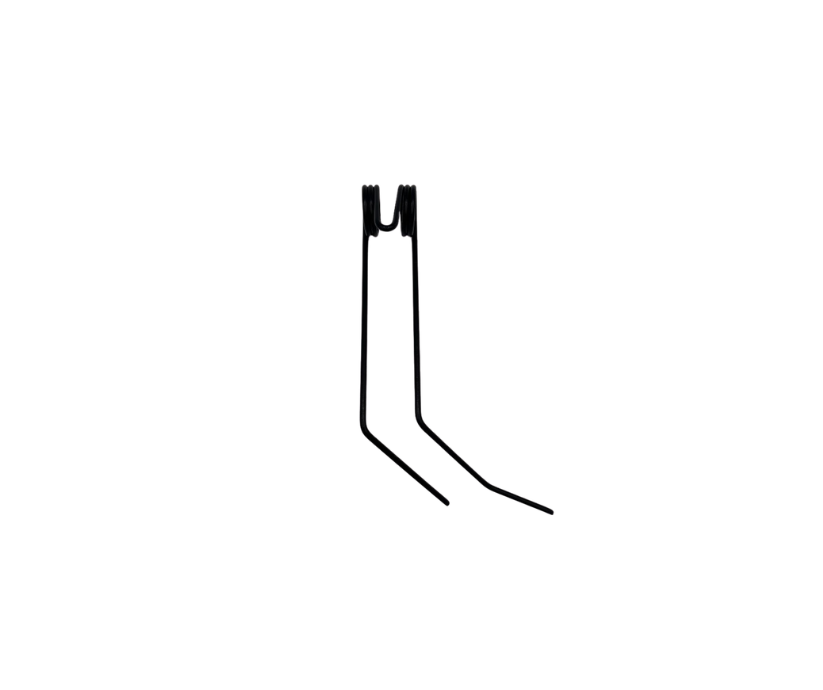

S- harrow spring  Ø8

Sowing spring
